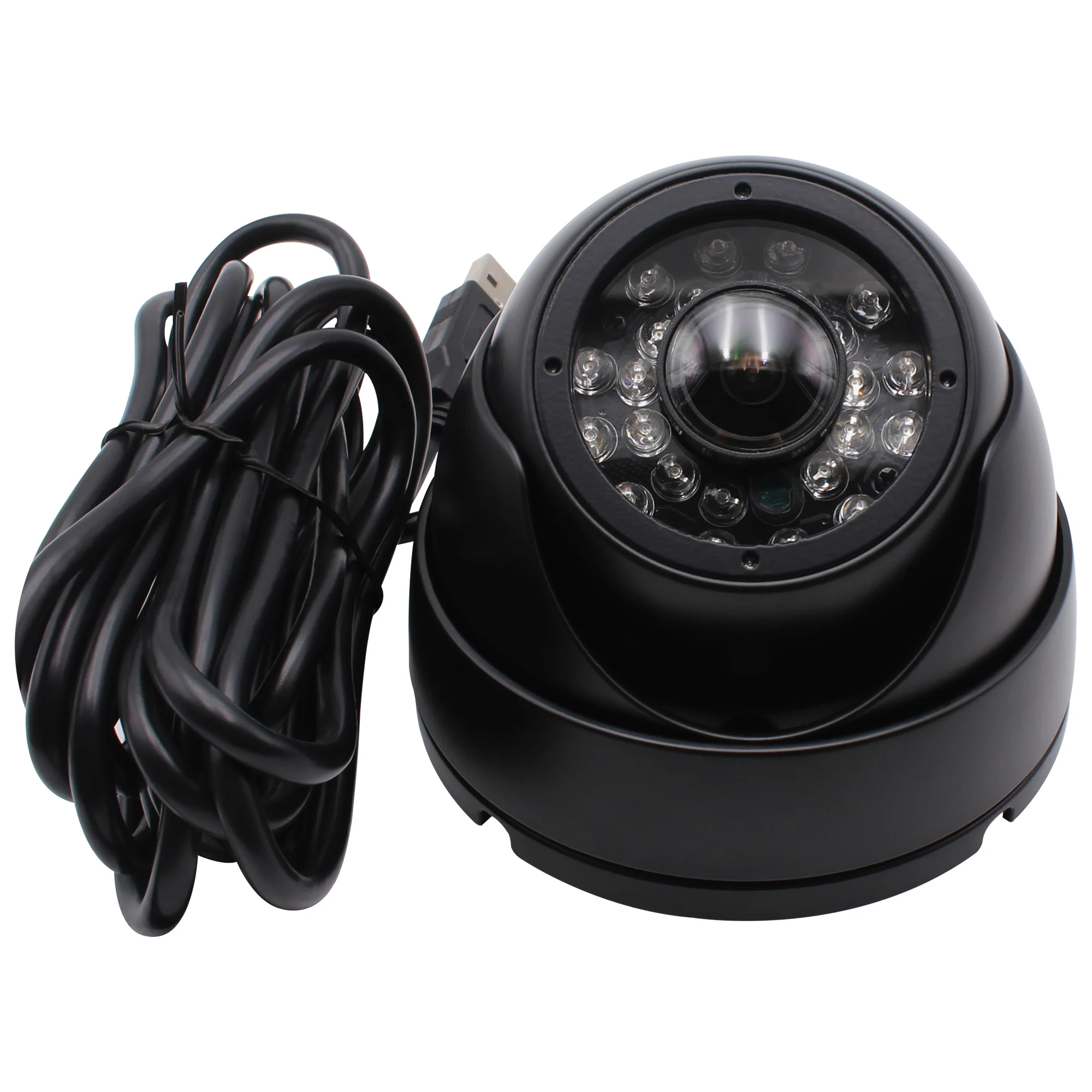

ELP 2MP Waterproof Wide Angle Mini Webcam1080P H.264 Day & Night Vision Dome USB Camera For Home Office Video Security
1. Ultra Low light Camera, Minimum illumination 0.01lux
2. Support otg protocal
3. Max resolution :1920*1080P ,2.0 Megapixel
4. Highly advancedSony IMX323 Sensor
5. Compression format : H264 /MJPEG / YUV2(YUYV)
6. White balance Function: Resolve color reduction and tone processing issues
7. With waterproof metal case for outdoor use.

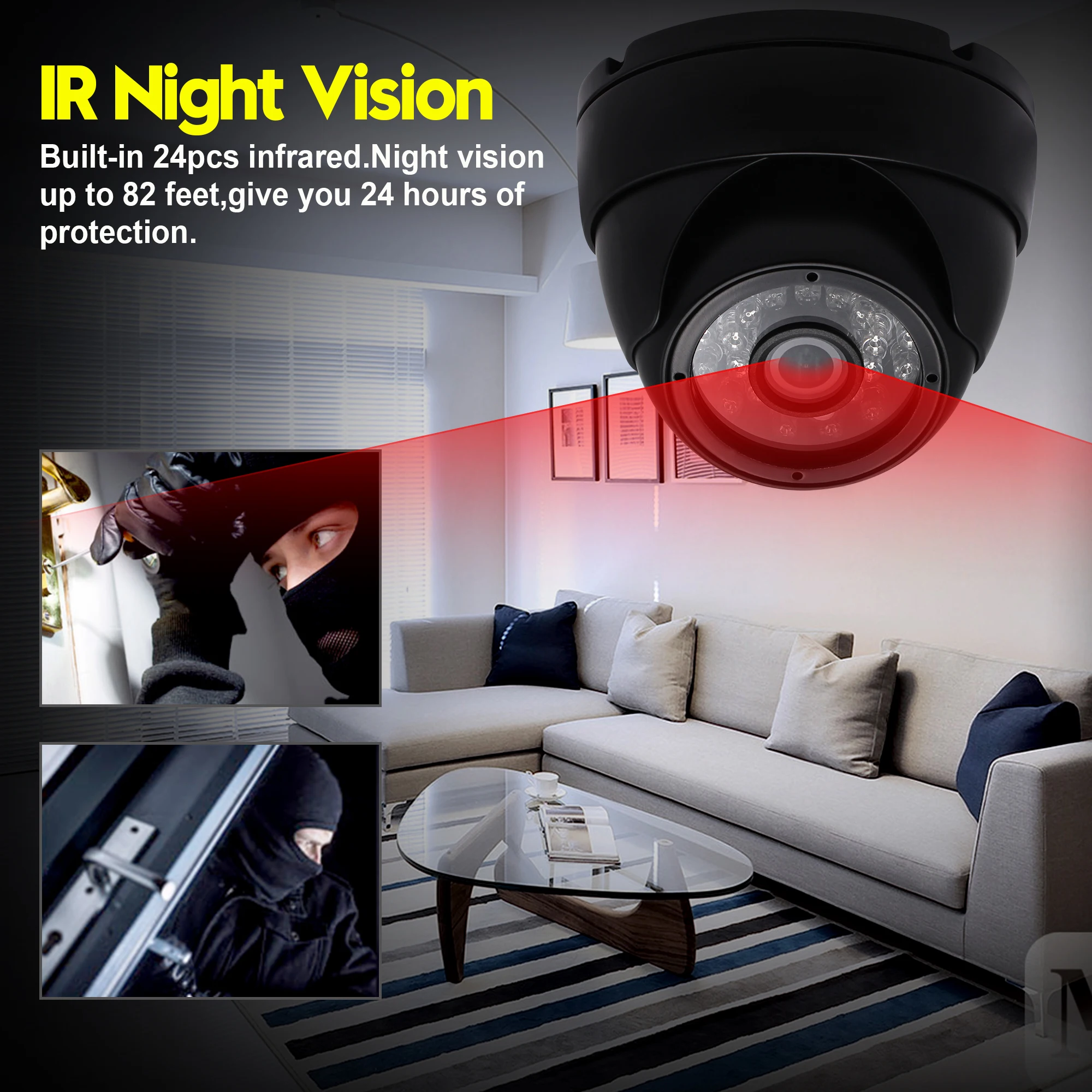

8. Infrared Night vision support
Optional Models | ELP-USBFHD06H-DL170 | ||
Item | 2MP Low illumination full HD micro USB camera | ||
Resolution & FPS | 1920 x 1080 H.264/MJPEG 30fps 1280 x 720 H.264/MJPEG 30fps 800 x 600 H.264 /MJPEG 30fps YUY2 15fps 640 x 480 H.264 /MJPEG/YUY2 30fps 640 x360 H.264 /MJPEG/YUY2 30fps 352 x 288 H.264 /MJPEG/YUY2 30fps 320 x 240 H.264 /MJPEG/YUY2 30fps | ||
Sensor | IMX323 | Connecting Port Type | USB2.0 High speed |
Sensor Size | 1/2.9 inch | Support free driver | USB Video Class(UVC) |
Pixel Size | 2.8µm | Shutter Type | Electronic rolling shutter/ Frame exposure |
Max. Resolution | 1920 (H) *1080 (V) | AEB AEC | Support |
Picture format | H.264 MJPEG or YUY2(YUYV) | AGC | Support |
Lens Parameter | HFOV 150 degree lens 2.8/3.6/6/8/12mm Lens for optional | Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast | |
Cable | Standard 5 meter / Optional 1m,2m,3m | work temperature | DEGREES(-20~70) |
Board Size | 38x38mm/32x32mm | Certifications | FCC and CE |
Mini illumination | 0.01lux | Power Supply | DC 5V |
USB Protocol | USB2.0 HS/FS | Operating Voltage | 140mA~190mA |
OTG protocol | USB2.0 OTG | Special function | Low illumination, with microphone |
Night vision | Day and Night vision | LED board power connector | Support, 2P-2.0mm socket |
Support OS | WinXP/Vista/WIN7/WIN8 /WIN9/WIN10 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above |
The below effect image from difference lens,just for reference the effect of ELP-USBFHD06H camera,
you can tell me the view angle you need, then we can recommend you with suitable lens.
High Quality IMX323 Image Sensor:
2 megapixel webcam with IMX323 image sensor is the high standard in terms of image quality and sensitivity performance.0.01Lux Low illumination are suitable for weak light conditions.
2MP 1080P High Speed USB2.0 Manual Focus Camera
Max.Resolution:1920(H)X1080(V)
High Definition [email protected] for high level video system for personal or industrial.High speed usb 2.0 data transmission,occupy less bandwidth,provide more stable and fluent video,greatly improved the working efficiency.

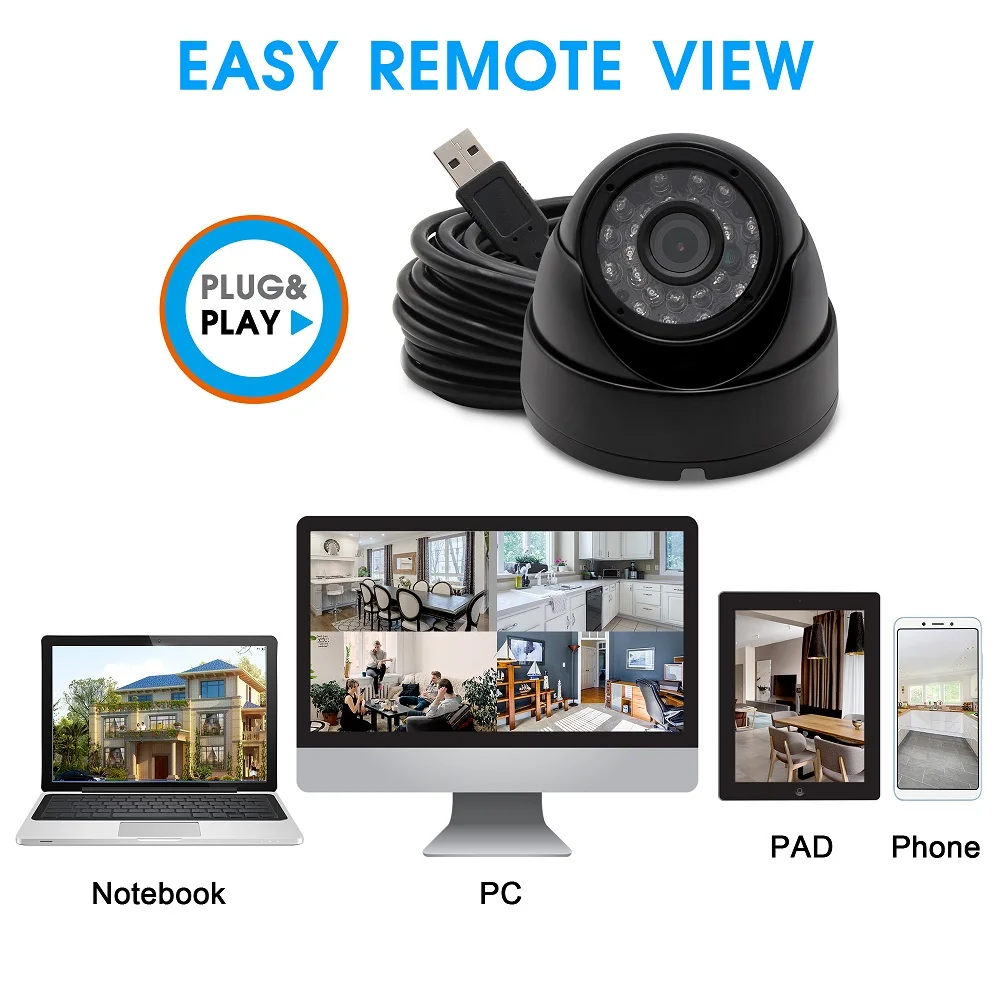

Plug&Play&Wide Application in Most Filed Free driver,small outlet can embedded in most equipment. 1080P Full HD USB webcam used for :
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.

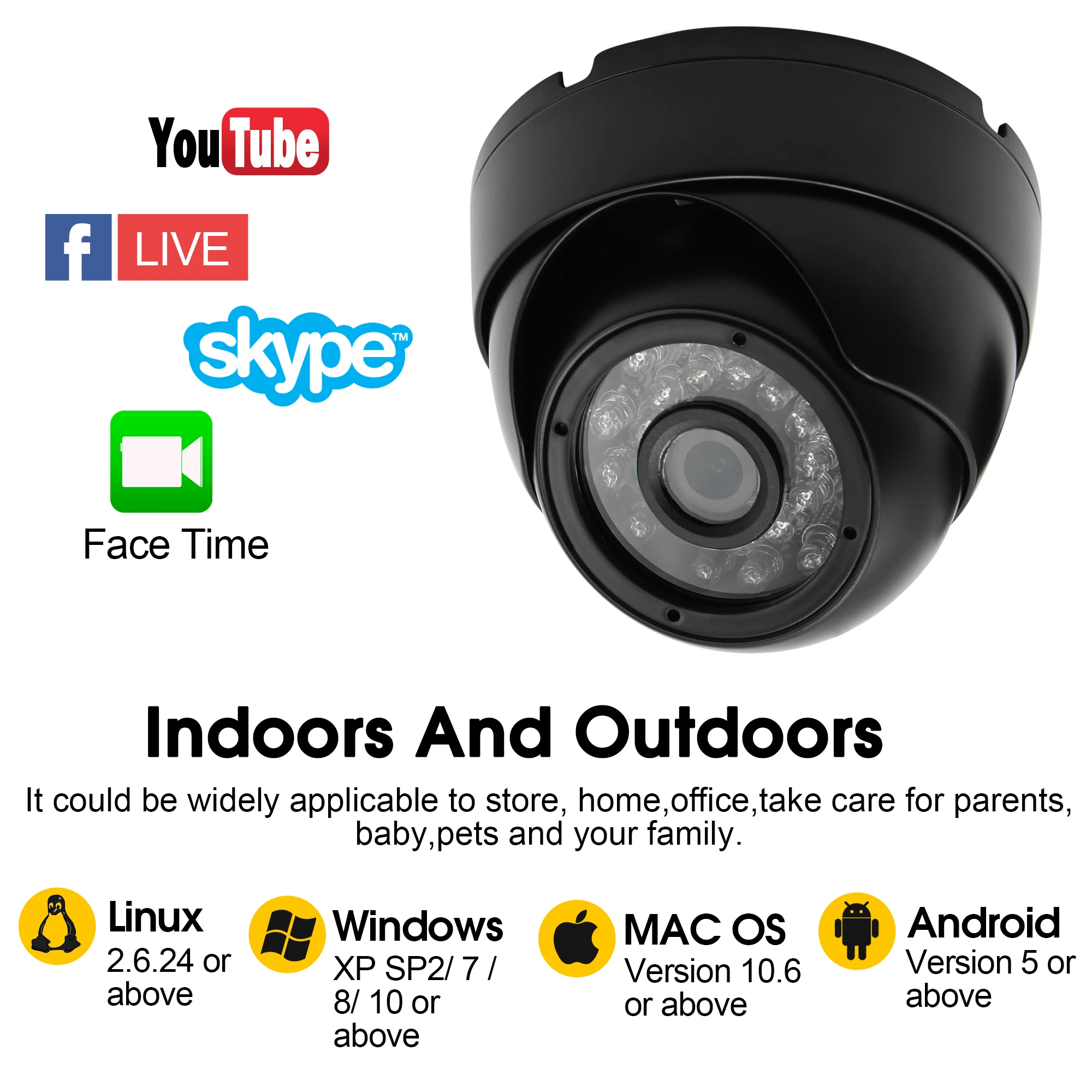

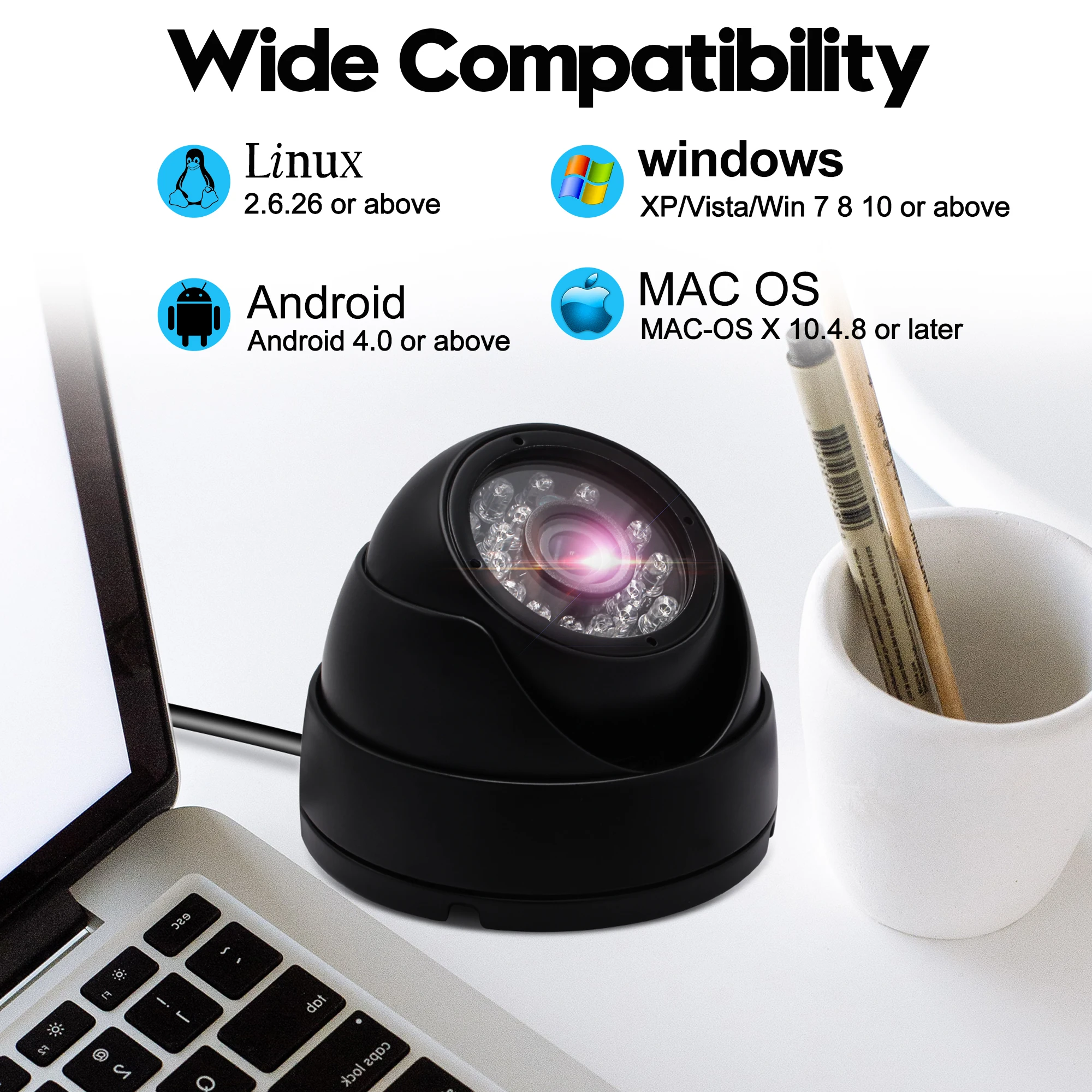

UVC Compliant Compatible with Most OS:
1080P mini webcam usb camera is versatile for Skype,OBS,Zoom,Go To Meeting, Facebook LIVE,and YouTube Live streaming services, widely works with Raspberry Pi/WinXP/Vista/Windows 7/8,Windows 10 Linux with UVC(above linux-2.6.26)MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC. IEights usb camera can work along with the webcam software installed by default in the PC.
Shenzhen Ailipu Technology Co.,Ltd established in 2005, is a 17 years professional USB Camera manufacturer in China. Our own brand ELP is well known in USB camera market.
We achieve quality certificate like ISO9001, ROHS,UL, CE,FCC.
We Manufacture Different USB Cameras for Different Vision application, Like ATM, Kiosk, Robot, Medical device,video surveillance.
Resolution range from 0.3MP to 8MP. Recently We launch new Camera Like Ultra HD 4K cameras,13MP cameras,16MP Cameras.
We also supply special function Auto focus cameras, WDR Cameras, High Frame rate cameras, Global shutter camera, USB 3.0 cameras, Stereo cameras. We can also provide OEM&ODM service.
