4K Webcam Video Conference Camera IMX415 30fps 8MP Full HD USB Web Cam Laptop Desktop Camera for Office Meeting Live Streaming
ライオン電子
4K Webcam Video Conference Camera IMX415 30fps 8MP Full HD USB Web Cam Laptop Desktop Camera for Office Meeting Live Streaming

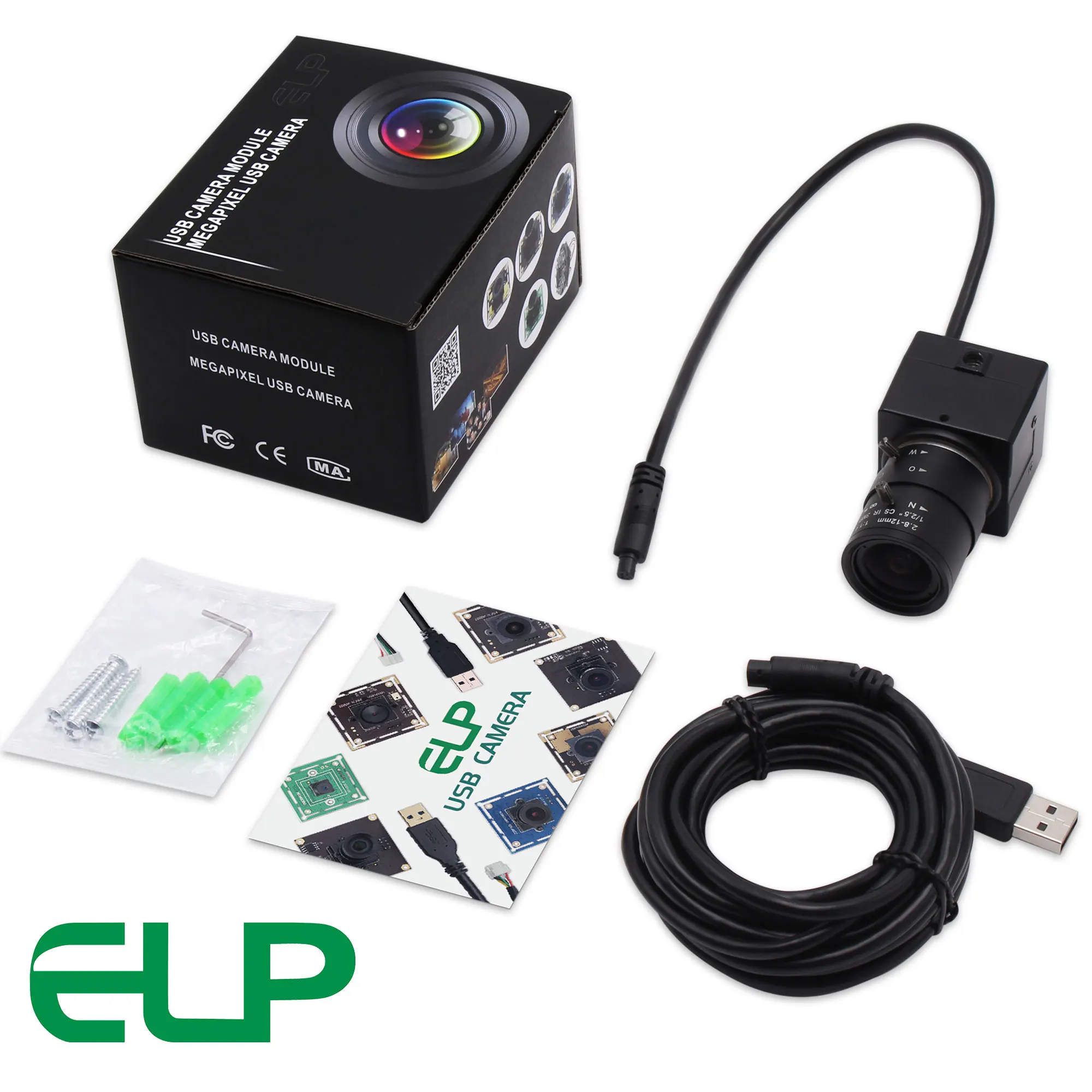

Packing list:
1) 1pc 4K USB camera with 2.8-12mm/5-50mm/6-60mm lens optional ,4/6/8/mm CS lens optional
2) 1pc 3m usb cable

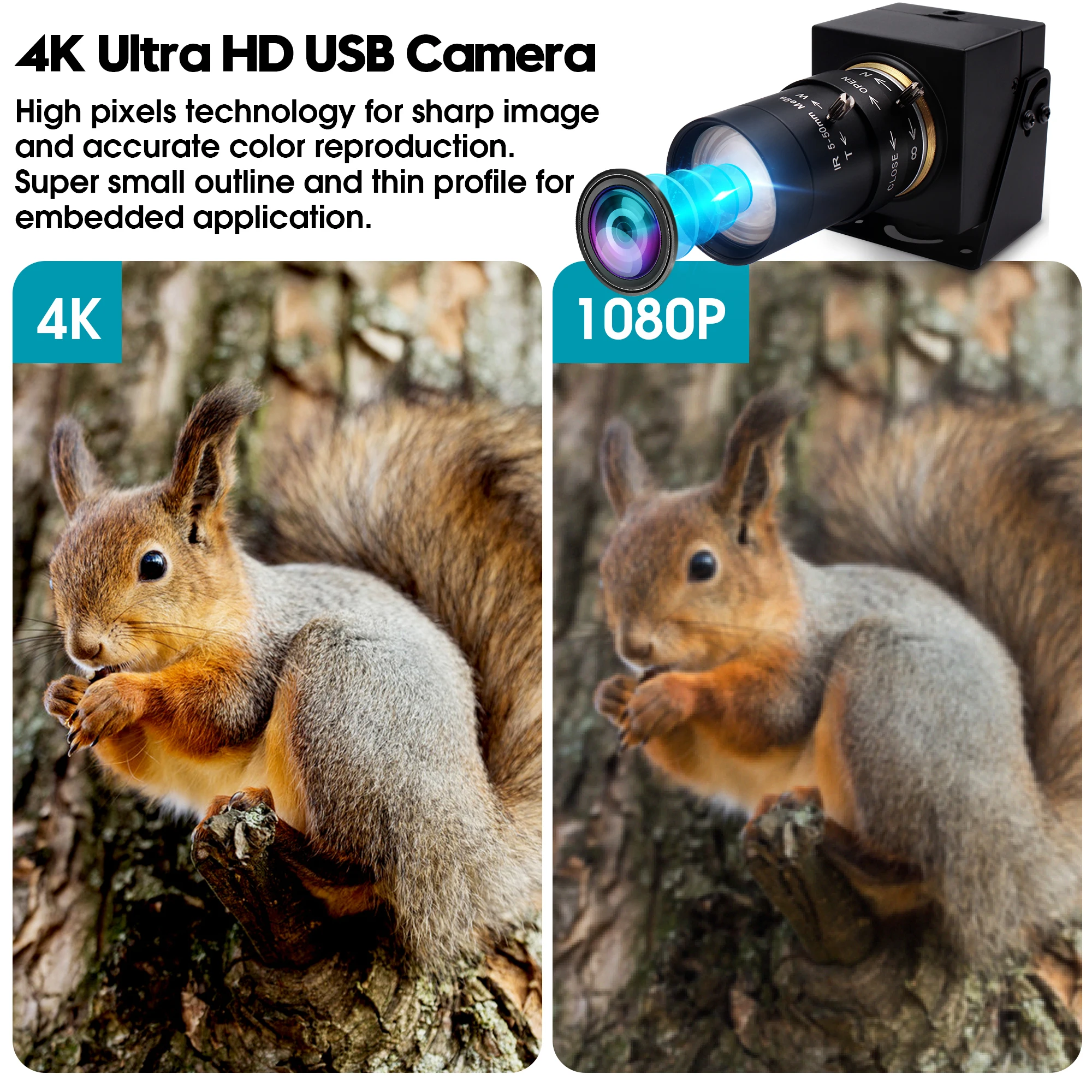

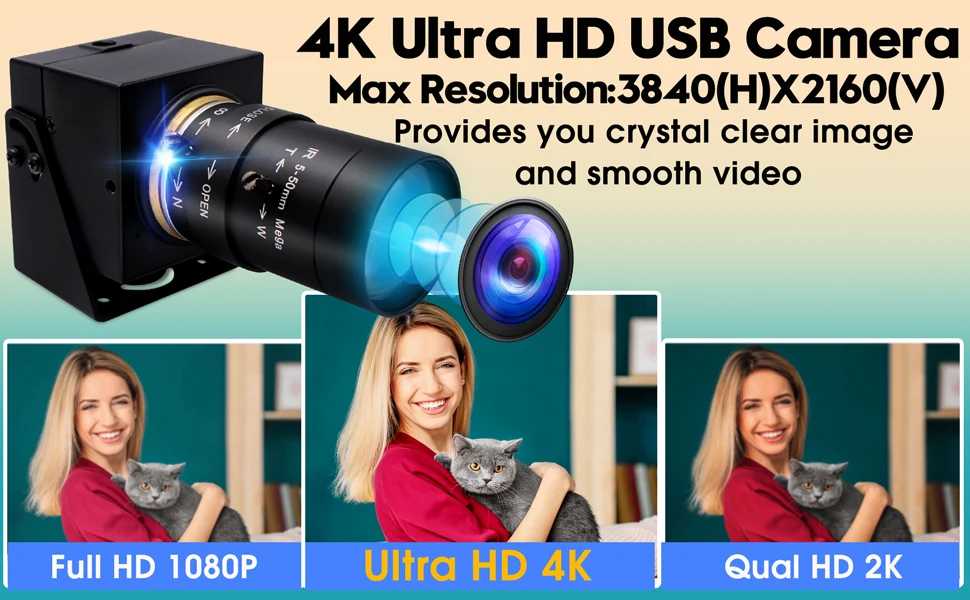

1) Use Sony IMX415 Sensor, Max resolution: 3840*2160
2) High Frame rate: MJPEG 30fps at 4K resolution

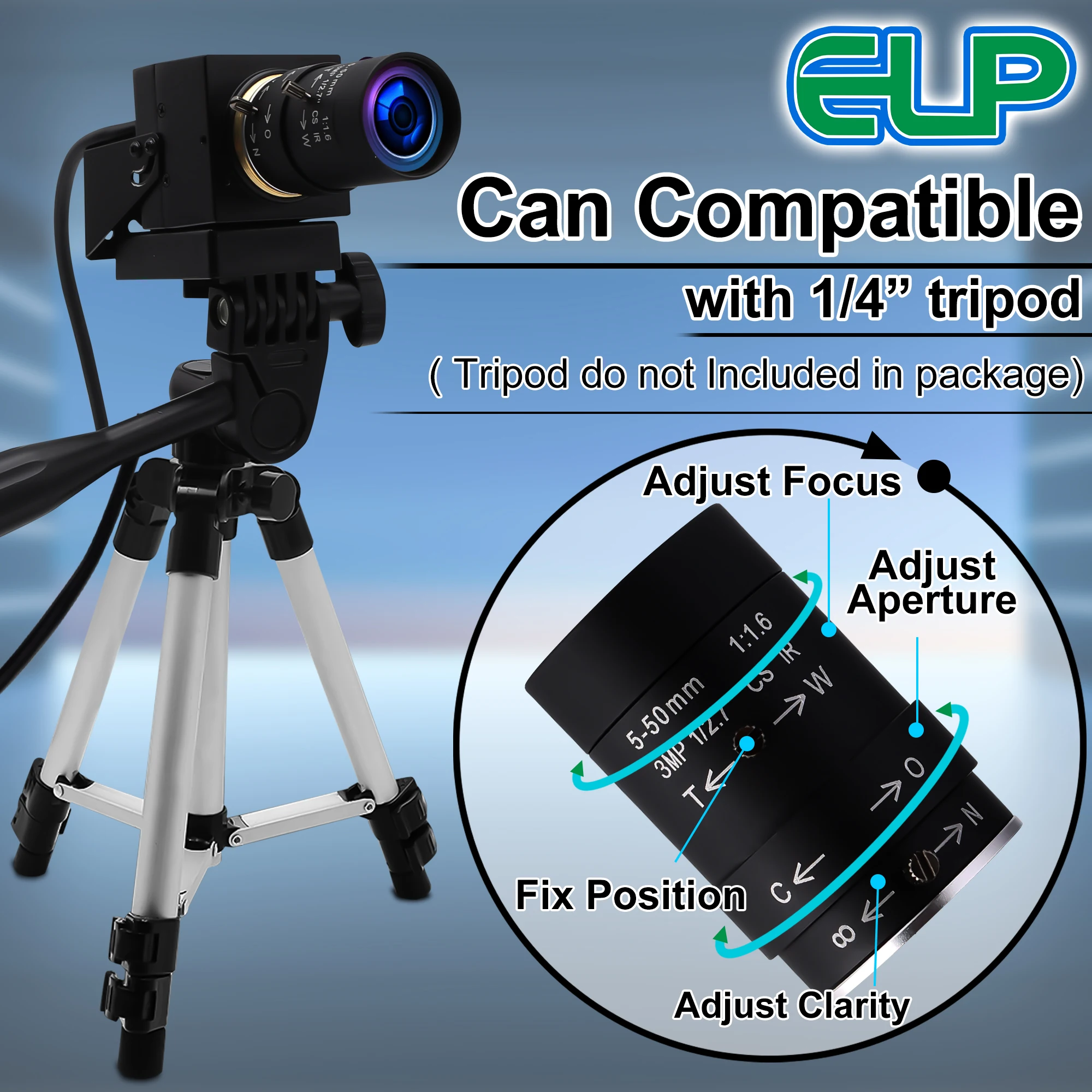

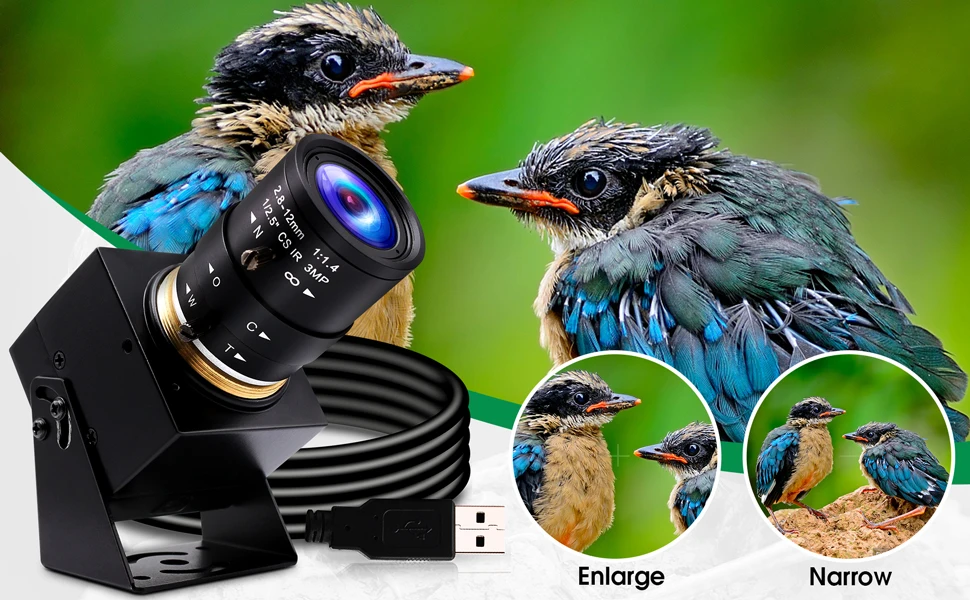

3) Equiped with high quality 5-50mm/2.8-12mm/6-60mm varifocal lens
4) Wide Application: ,
Model NO.: | ELP-USB4K03-UFV |
Image Sensor | SONY IMX415 (1/2.8” ) |
Max. Resolution | 3840(H) *2160 (V) |
Sensitivity | 1000mV/Lux-sec |
Pixel Size | 1.45µmx1.45µm |
Compression format | MJPEG / YUY2（YUYV） |
Resolution & frame | 3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE 1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2 1920x1080@ 5fps YUY2/1280x960@5fps YUY2 1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2 |
Center definition | 1000LW/PH (Center) |
S/N Ratio | 30dB |
Sensitivity | 0.65V/lux-sec@550nm |
Minimum illumination | 0.2lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
AEC | Support |
AEB | Support |
AGC | Support |
Focus | Fixed Focus |
Adjustable parameters | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure |
Lens Parameter | Size: 1/2.5, FOV: 94.5Degree IR filter: 650±10nm other lens optional |
Power supply& connector | USB BUS POWER 4P-2.0mm socket |
Power Voltage | DC5V |
Power Current | 200mA |
Board Size | 38mm × 38mm |
Storage Temperature | -20°C to 70°C |
Work Temperature | 0°C to 60°C |
USB Cable | 3m cable |

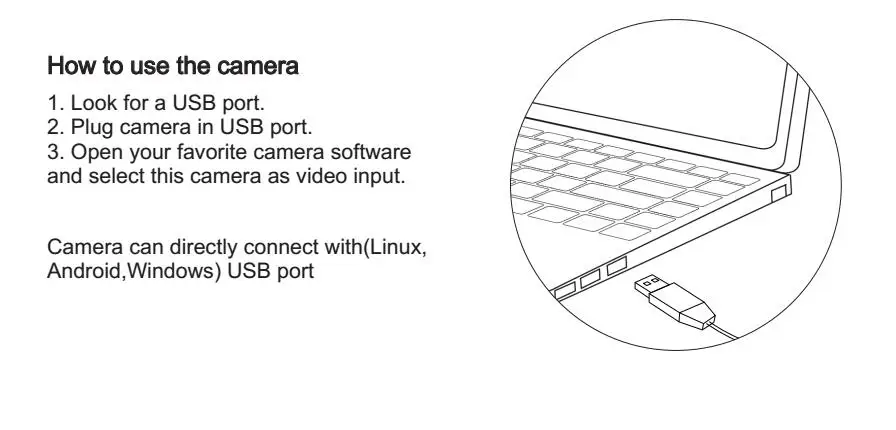

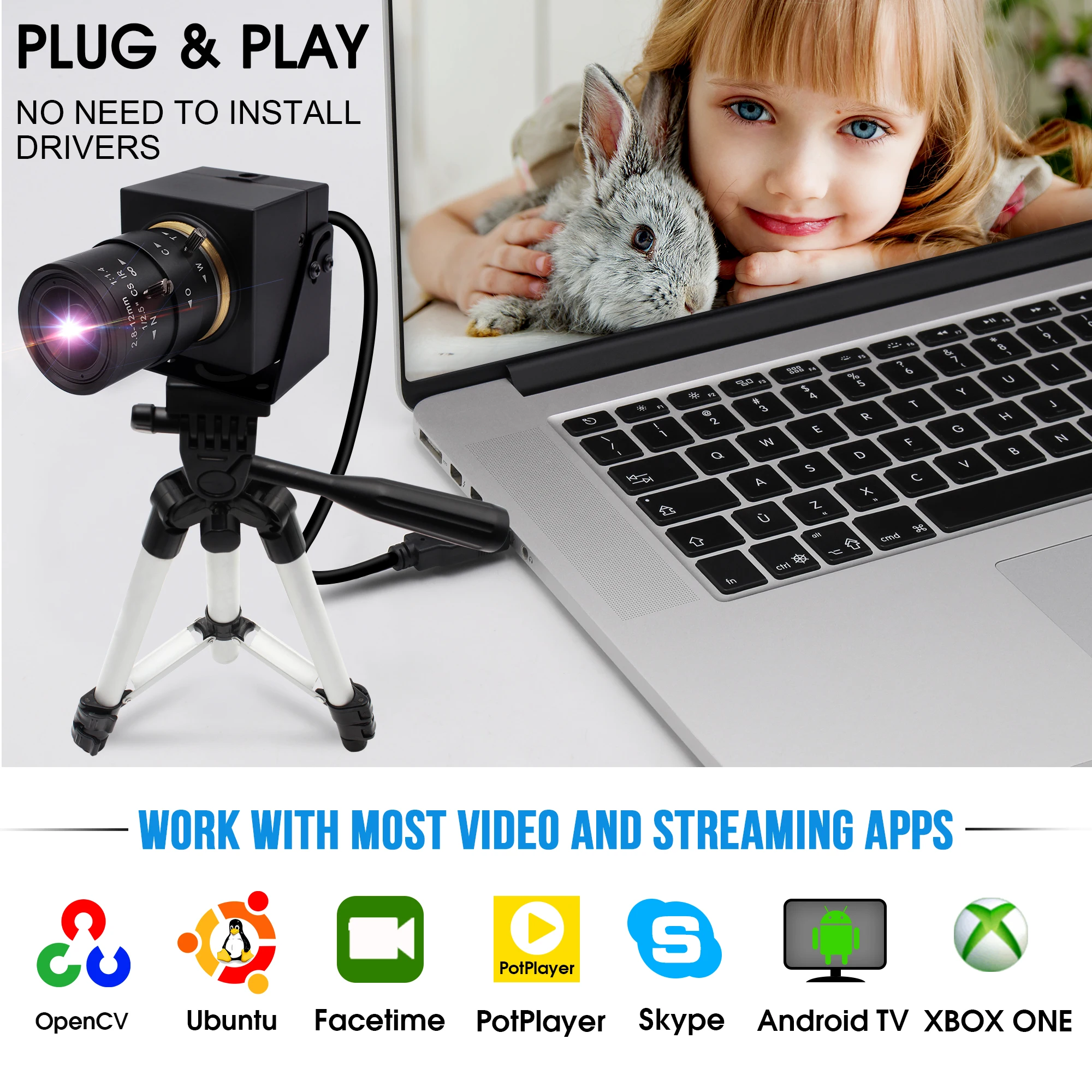

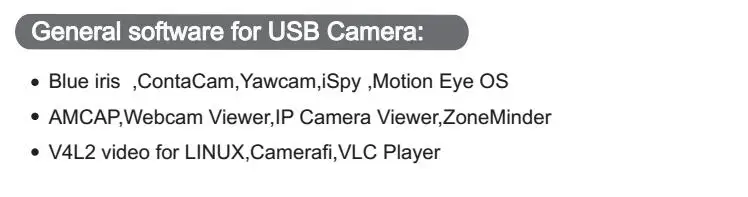

Operating System support | Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |

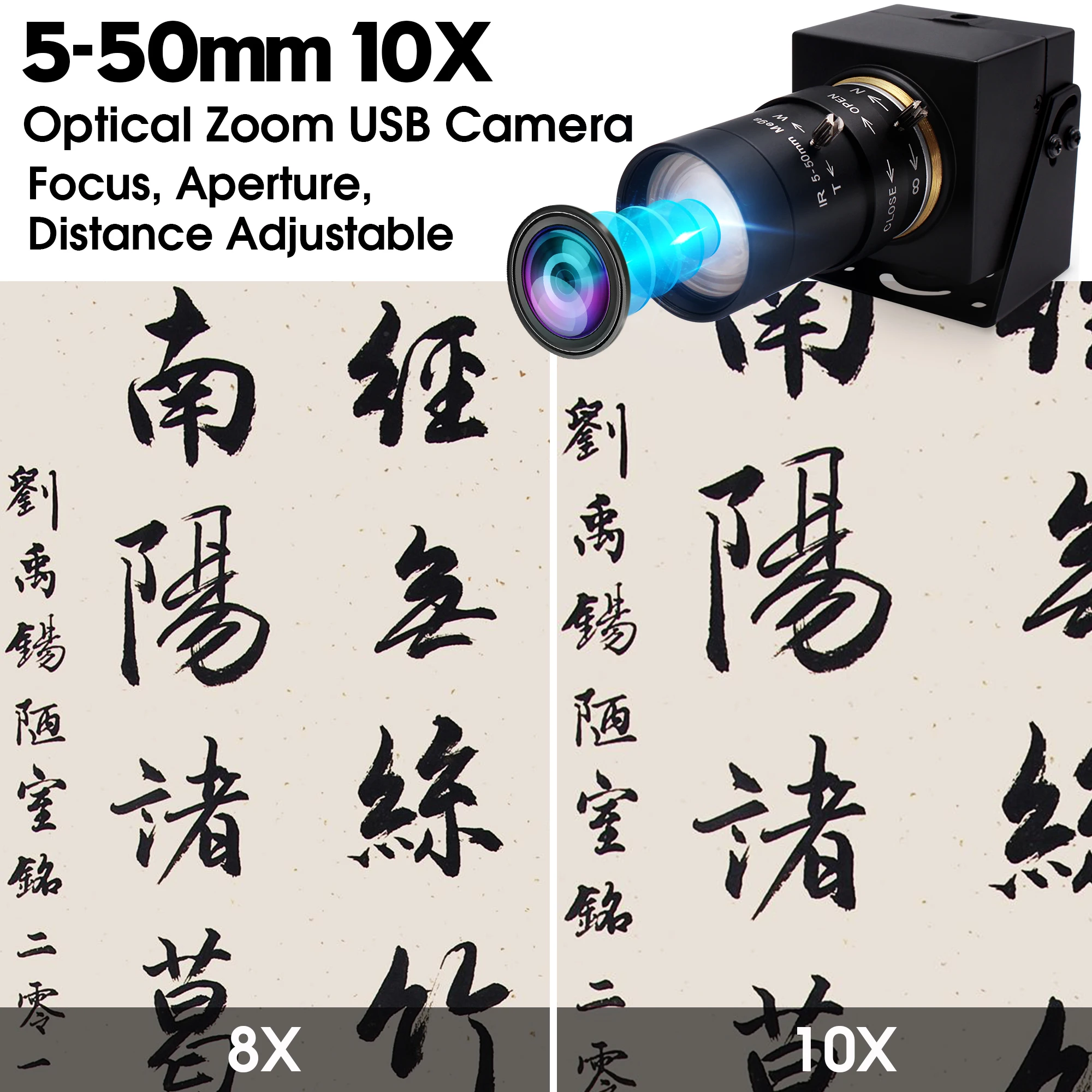

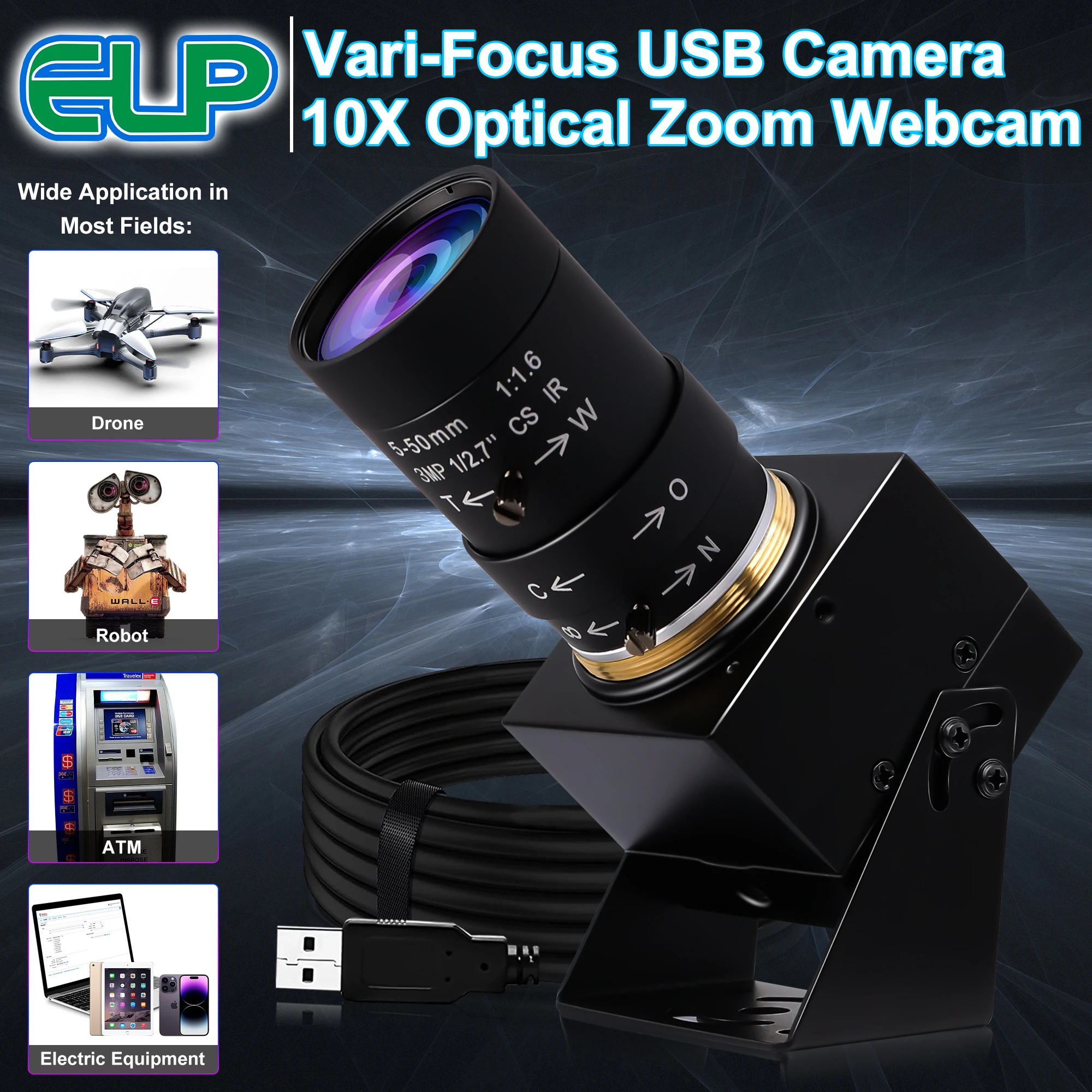

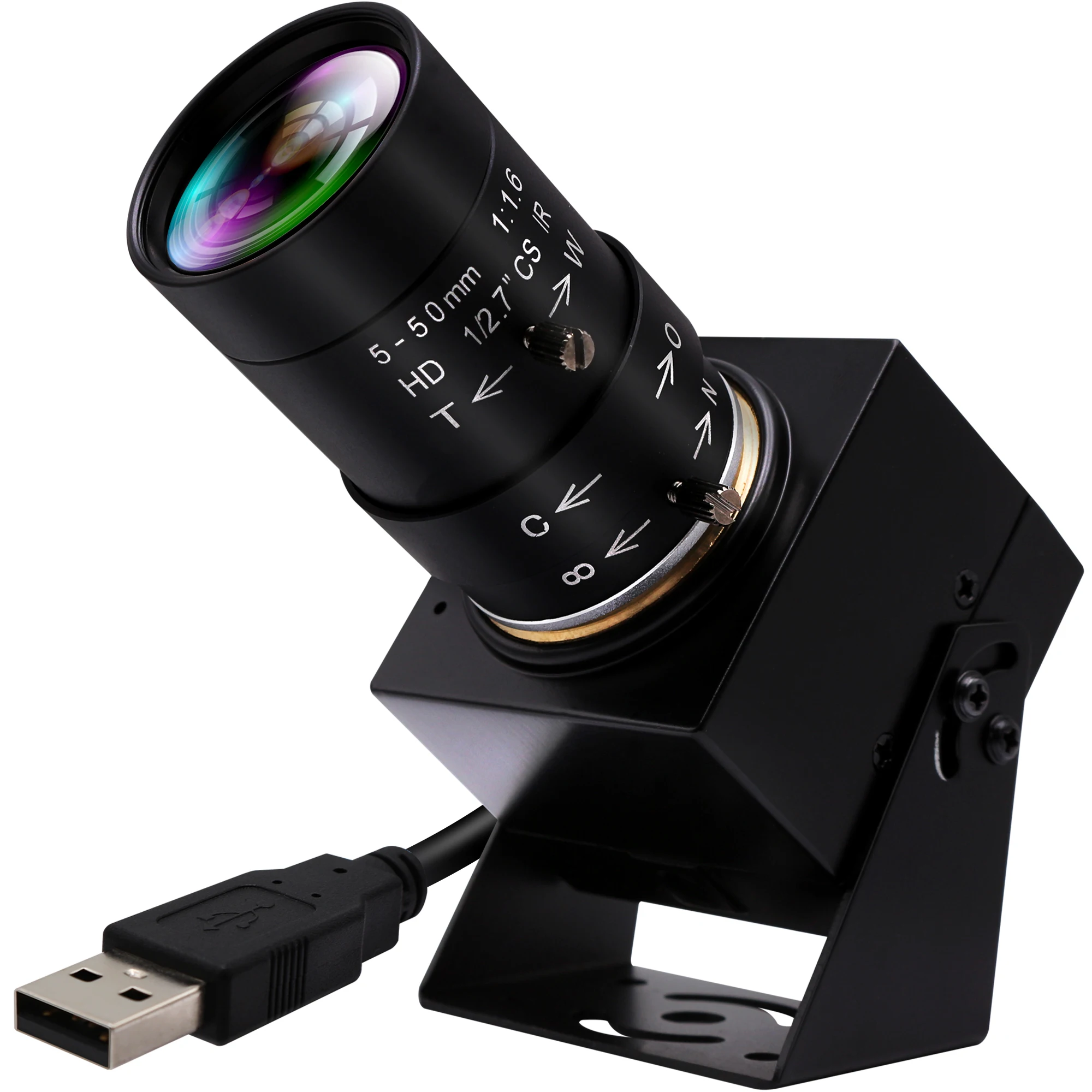

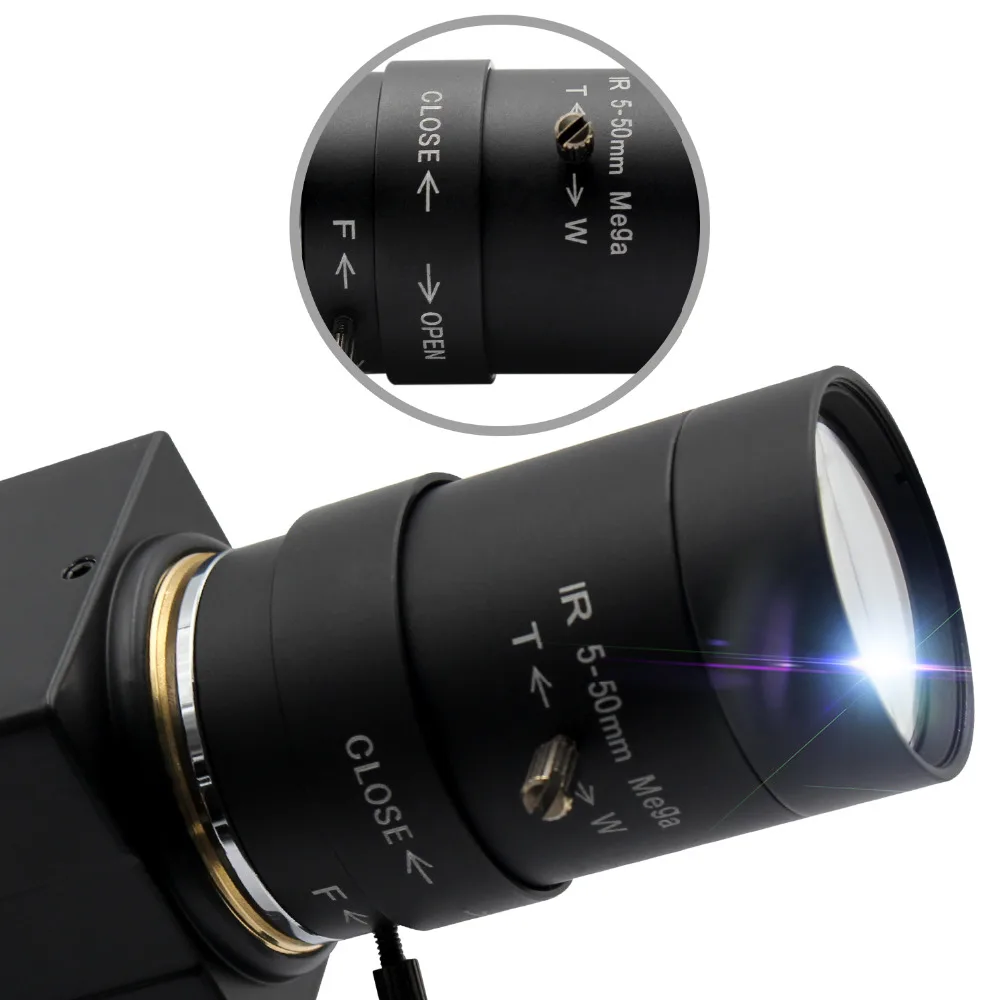

Varifocal 2.8-12mm /5-50mm lens optional
Packing:

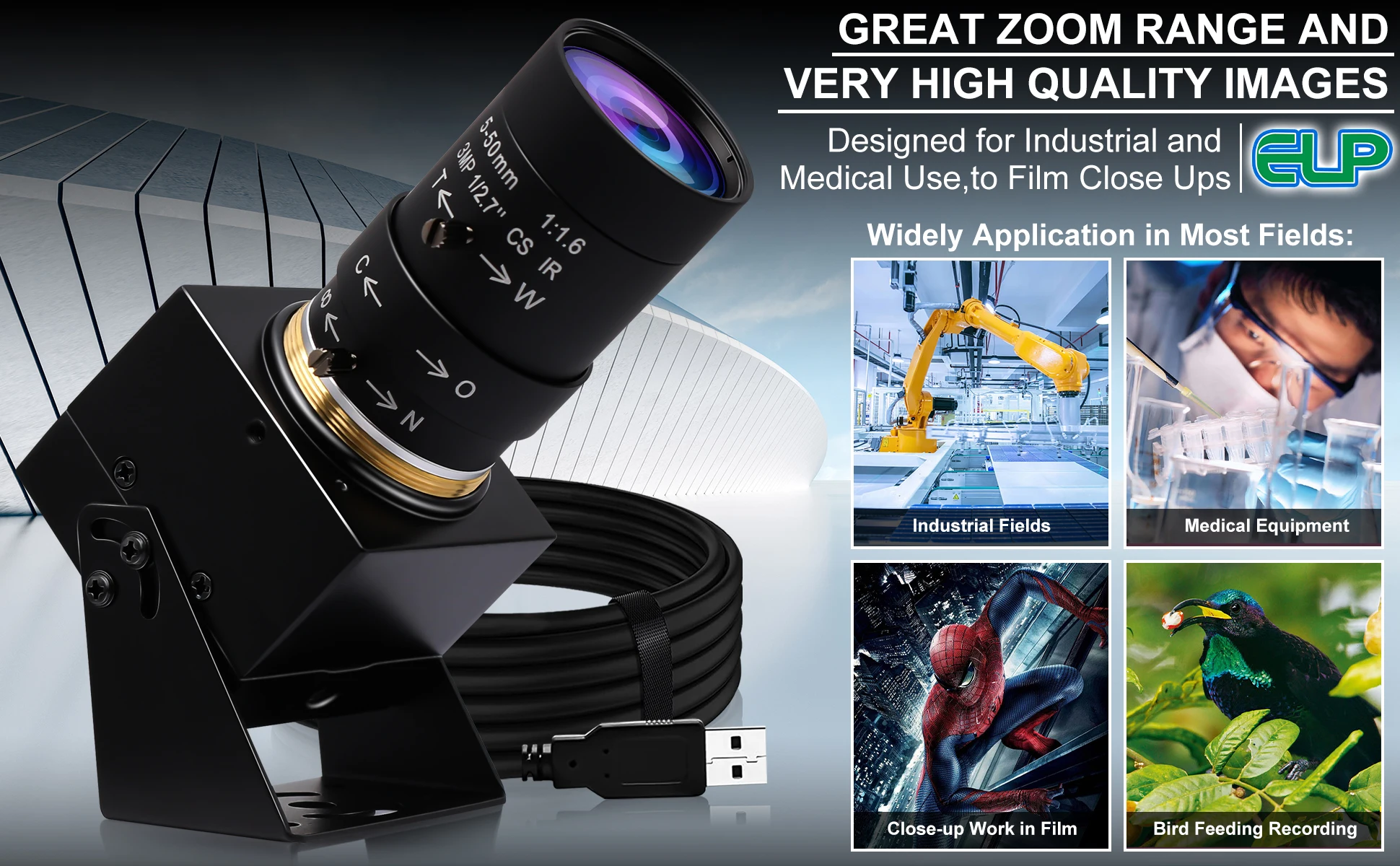

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
