Web Camera Webcam For PC Computer Laptop With Microphone HD 1080P 30fps H.264 Office Cam USB Cameras Youtube Video Webcams
ライオン電子
( Optional lens please point this place)
Web Camera Webcam For PC Computer Laptop With Microphone HD 1080P Vari Focus Office Cam USB Cameras Youtube Video Webcams
Key Features:
1. Ultra Low light Camera, Minimum illumination 0.01lux
2、Support otg protocal
4. Max resolution :1920*1080P ,2.0 Megapixel
5. Use Highly advancedSony IMX323 Sensor
6. Compression format : H264 /MJPEG / YUV2(YUYV)
7. White balance Function: Resolve color reduction and tone processing issues
8.Equiped with 2.8-12mm/5-50mm varifocal lens
Specifications:
Model | ELP-USBFHD06H-SFV (2.8-12mm varifocal lens) |
Sensor | Sony IMX323 |
Lens Size | 1/2.9 inch |
Pixel Size | 12.8X11.6 mm |
image area | 2000(H)X1121(V) approx. 2.24 M pixels |
Max. Resolution | 1080P |
Compression format | H264 /MJPEG / YUV2（YUYV） |
Resolution & frame | H264: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps YUV:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps |
S/N Ratio | 42dB |
Dynamic Range | 86dB |
Sensitivity | 5.0V/lux-sec@550nm |
Mini illumination | 0. 01 lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class（UVC） |

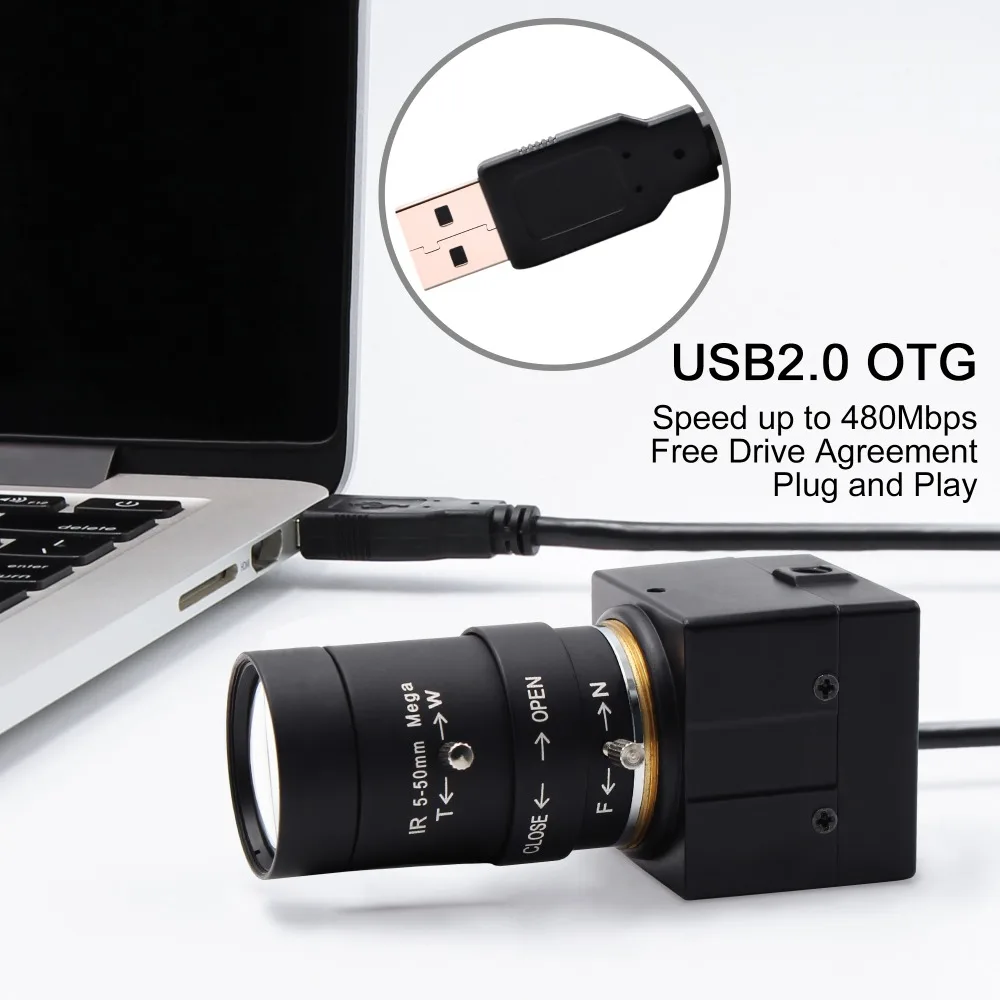

Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
Lens Parameter | 2.8-12mm Varifocal lens |
Digital audio | Need customize |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Power supply | DC5V |
Operating Voltage | 140mA~190mA |
Working current | -10～70℃ |
Working temperature | -20～85℃ |

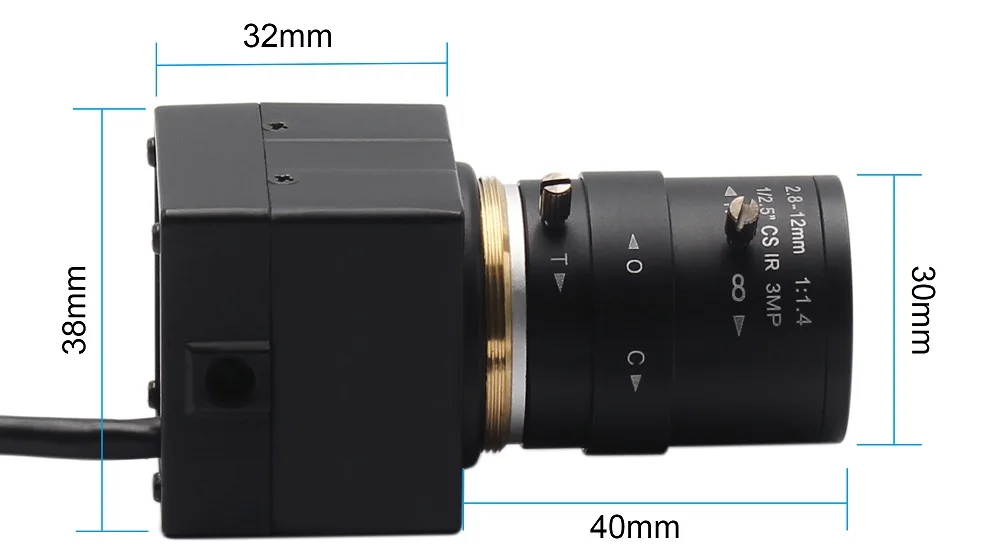

Board size /Weight | 38X38mm（Compatible 32X32mm）/ about 30g |
Cable | Standard 1M / optional 2M,3M,5M |

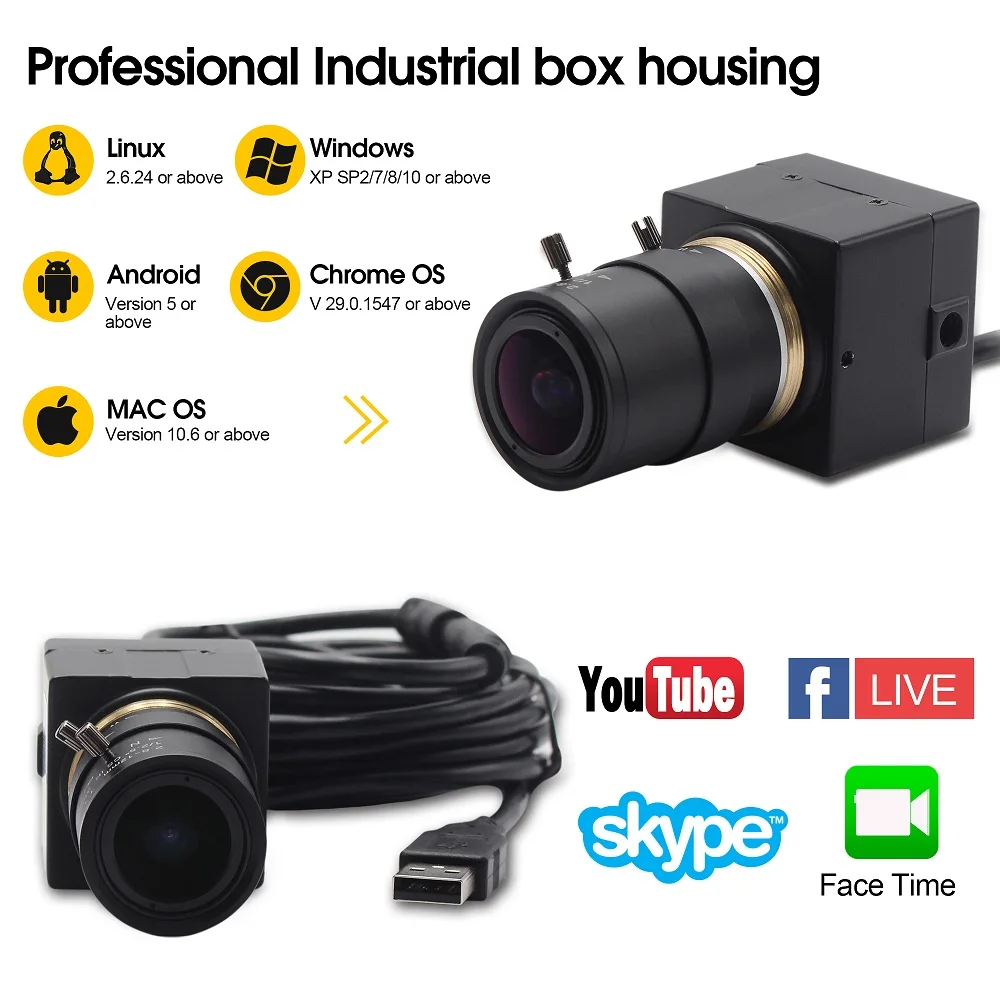

Operating system request | Win7 Win8 Linux 2.6 or above Android 4.0 or above |

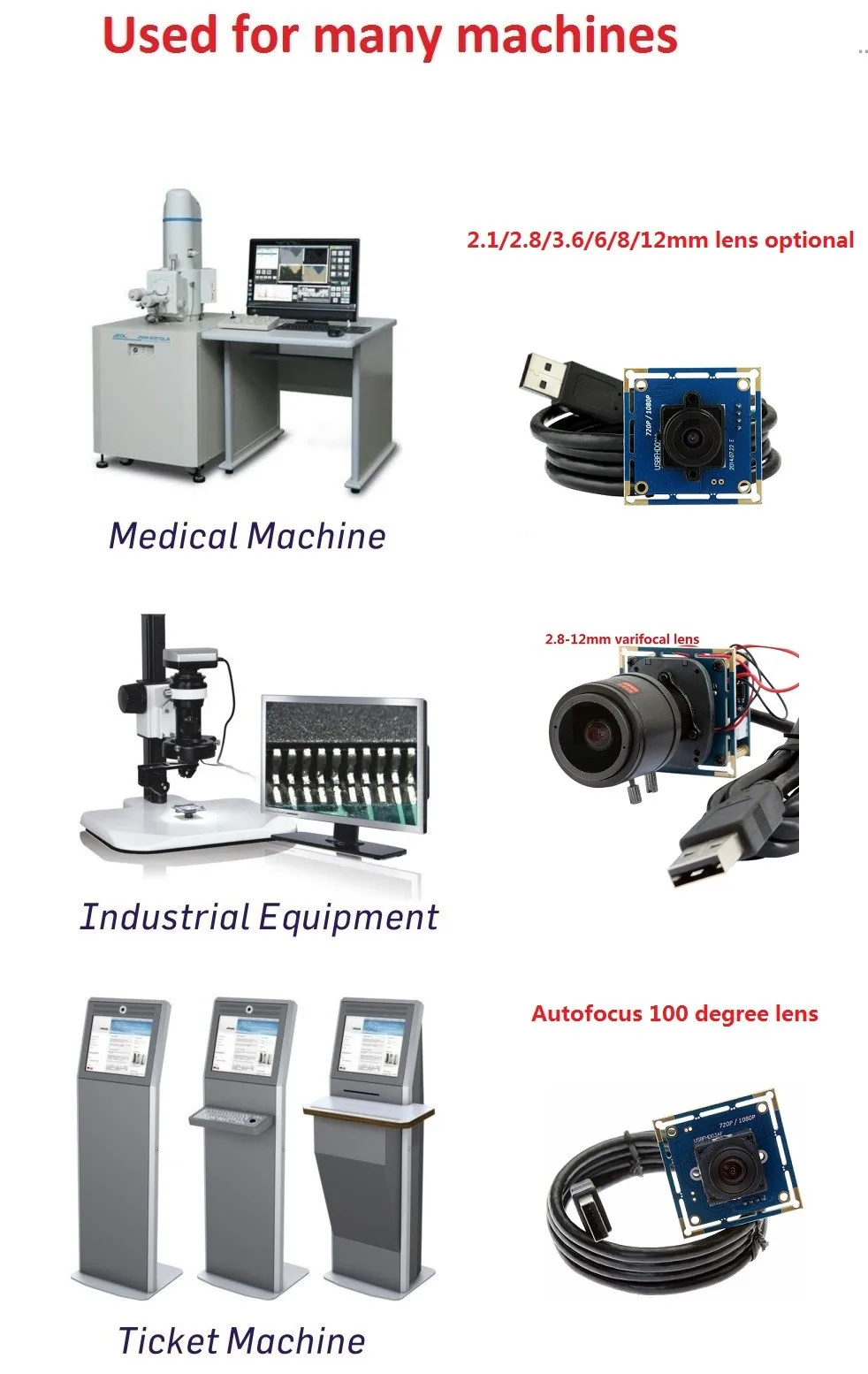

used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
Specially designed Packing for usb cameras:
USB Camera appllication:
