ELP Outdoor WDR Night Vision H.264 AR0331 3MP IR Infrared Dome USB Camera For Home Office Bank Vehicle Video Surveillance
Package Included:
1PCS 3MP AR0331 WDR USB Camera module with lens and 5m usb cable
Why Choose WDR Cameras?

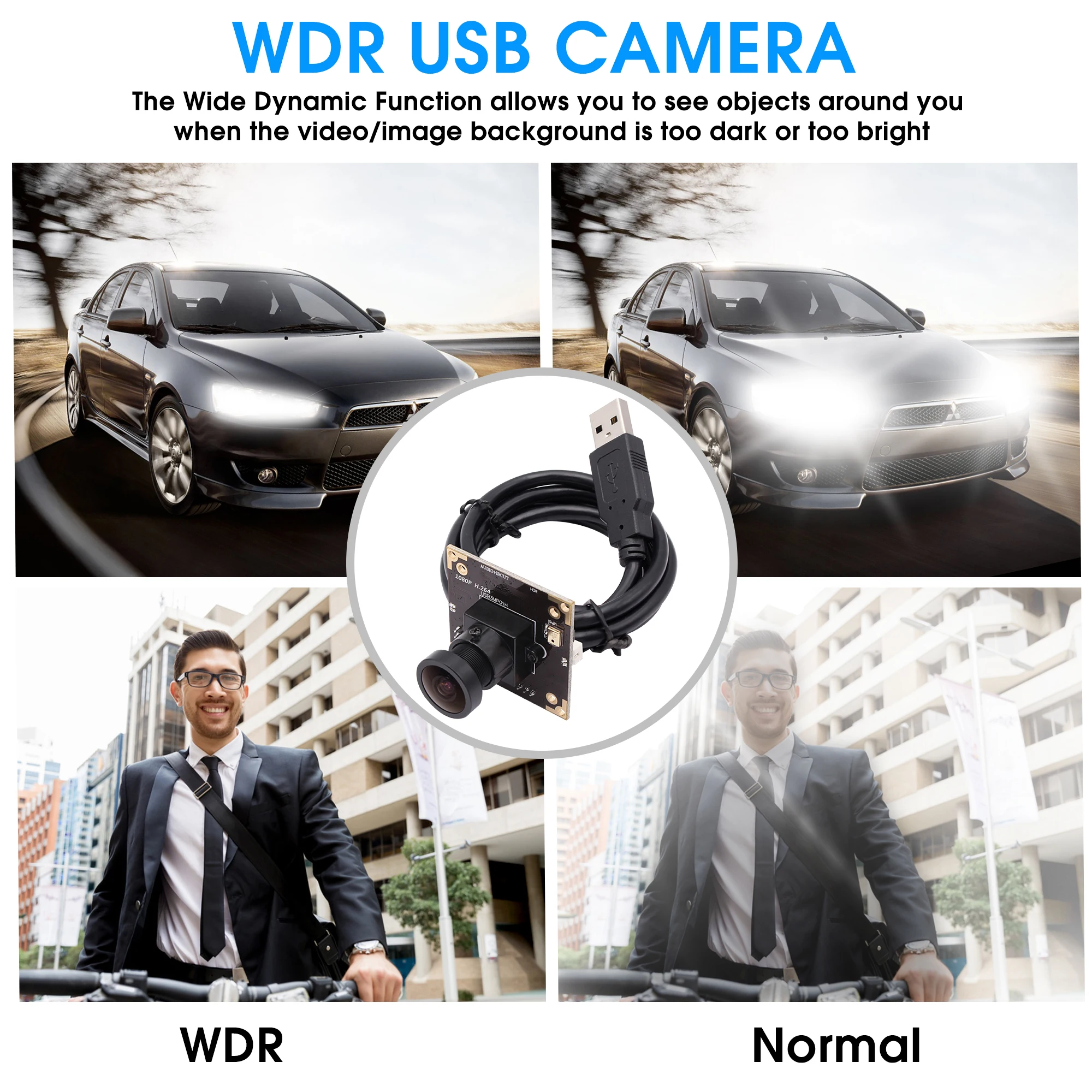

This 3MP WDR Camera is applied for viewing the image smoothly under the condition of severe light contrast. Broadly speaking, it stands for the possible range of certain changing object or an area the minimum value and the maximum value spans that can be seen. WDR allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject.
Features:
* 3MP WDR USB Camera with 3.6mm wide angle lens
* 1/3” Aptina AR0331 sensor for high quality image
* Dynamic Range up to 100 dB
* With Wide angle 3.6mm M12 lens
* With microphone for audio recording
* Support IR CUT & IR LED for no color distortion image day & night vision
* H.264/MJPEG/YUY2 video format optional
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.

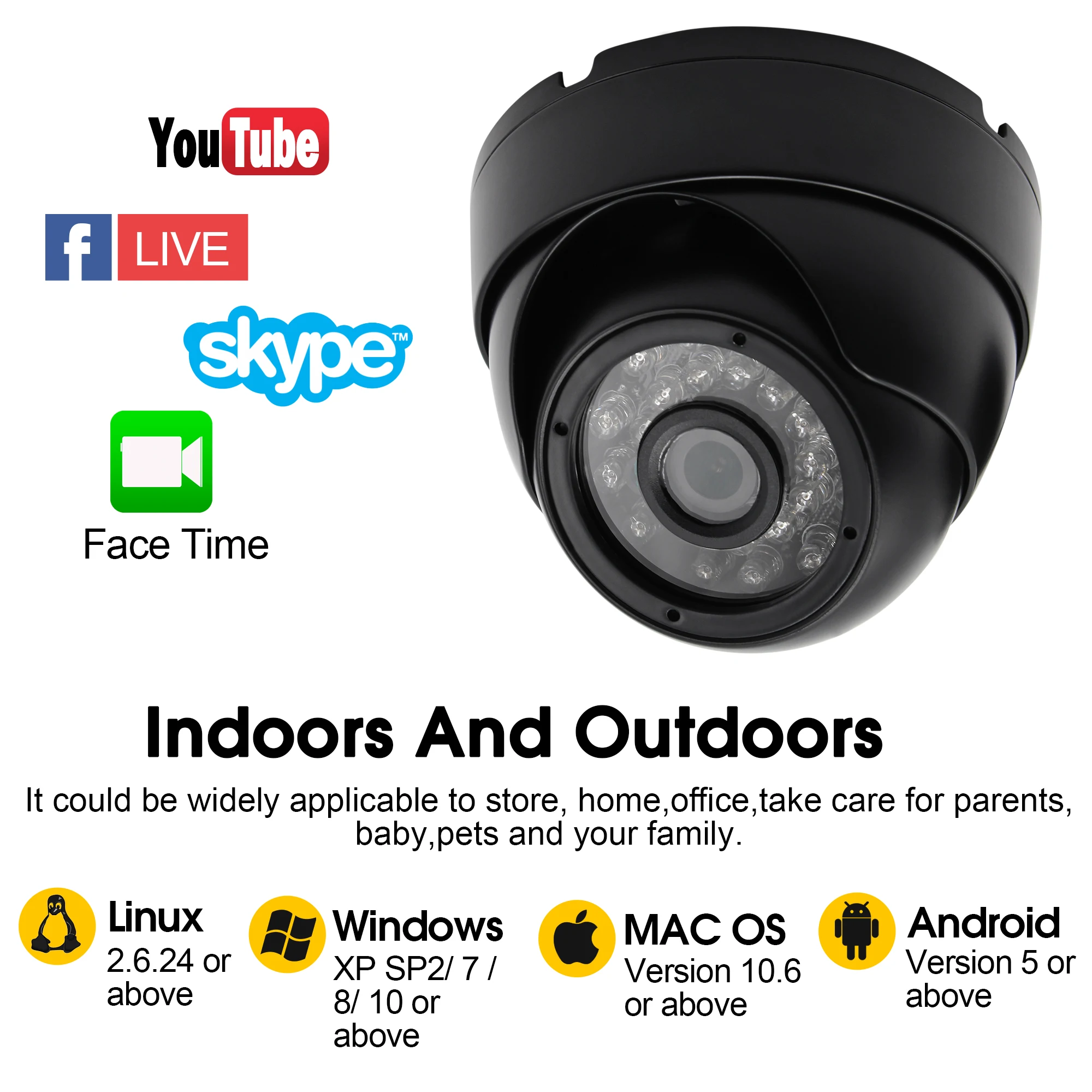

* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
Specification:
Model | ELP-USB3MP01H-DL36(3.6mm lens, Waterproof Dome Housing) Optional Night Vision Camera ELP-USB3MP01H-BH36(3.6mm lens, Waterproof Bullet Housing) ELP-USB3MP01H-KL36IR(3.6mm lens, Non-Waterproof Mini Box Housing) |
Sensor | AR0331 |
Sensor Size | 1/3 inches |
Pixel Size | 2.2um X2.2um |
Max. Resolution | 2048X1536 |
Compression format | H.264/MJPEG / YUY2(YUYV) |
Resolution & frame rate | H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps |
S/N Ratio | 39dB |
Dynamic Range | Up to 100 dB |
Sensitivity | 2.0V/lux-sec@550nm |
Min illumination | 0. 05lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AWB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
Lens Parameter | Standard 3.6mm, optional 2.8/6/8/12MM M12 Lens |
Digital audio | High quality digital MIC, support single, dual channel |
IR CUT Connector | Support 2P-1.25mm socket |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Operating Voltage | DC5V |
Working current | 140mA~200mA |
Working temperature | -10~70℃ |
Storage temperature | -20~85℃ |
Board size /Weight | 38X38mm / about 30g |
Cable | Standard 5M / 1/2/3M optional |
Operating system request | Win7 Win8 Win10 Win11 |
Products Details:
Applications:
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
