1.Easy to install and operation.Mini size and you can put it anywhere you want not only for webcast.
2.Low lllumination, high quality image.
3.Full TV System, used worldwide.
4.Video smooth without dragging shadow and long life time .2MP more clear.

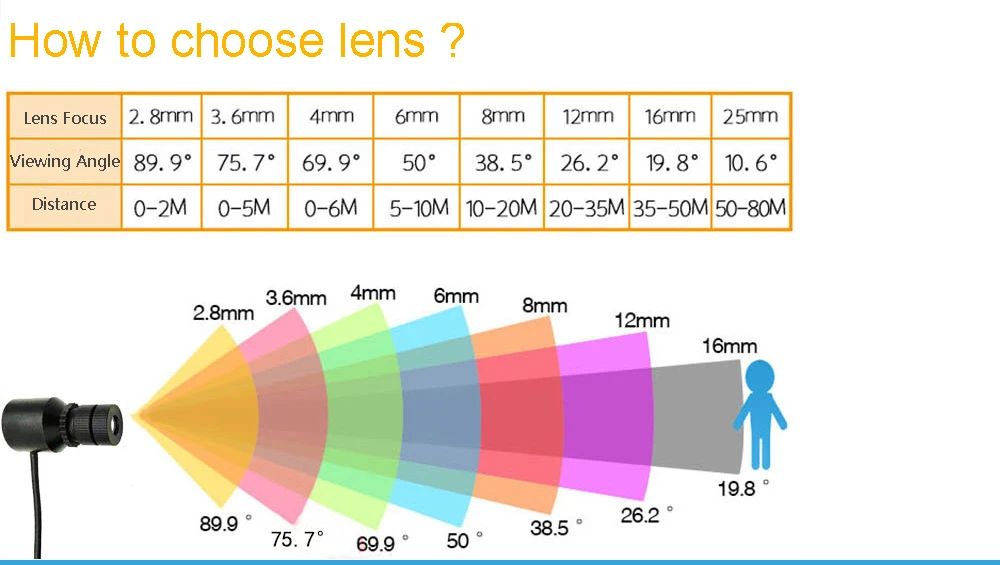

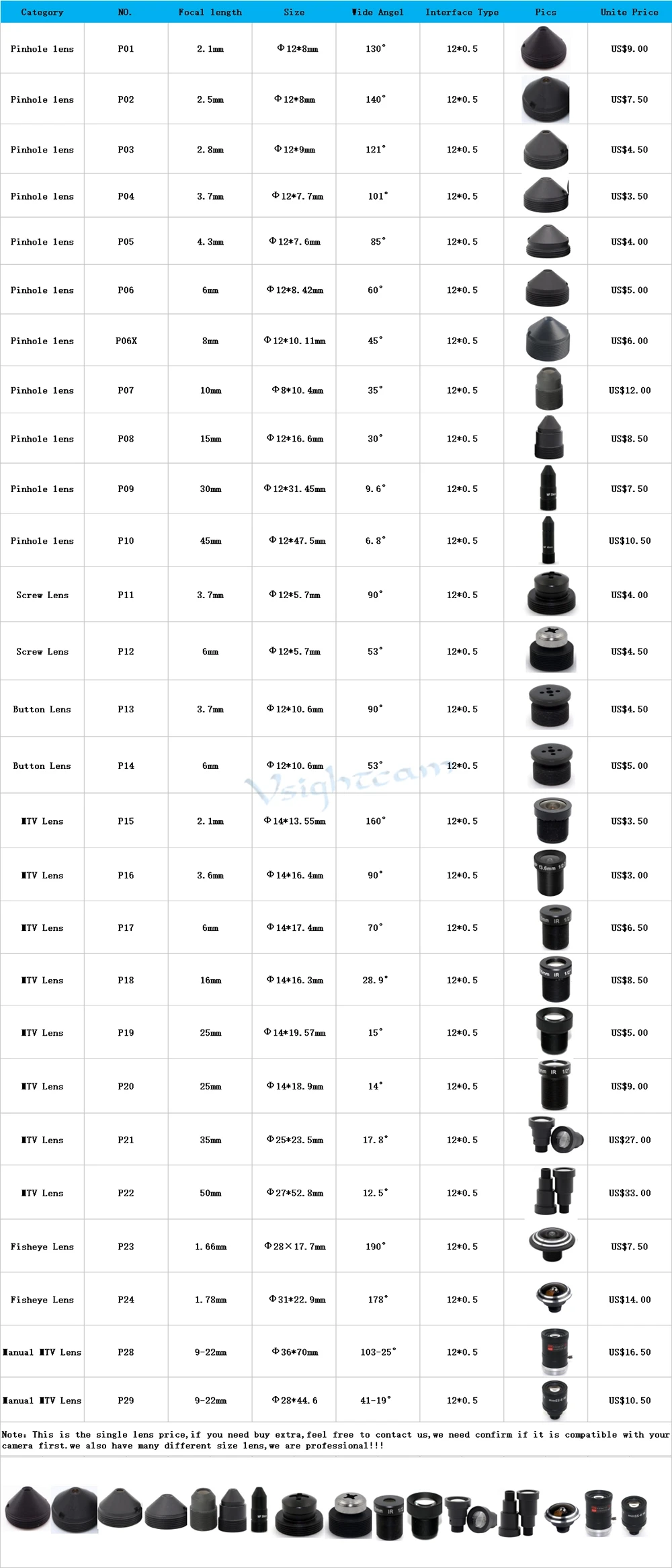

5. 3.6mm MTV lens or other lens optional (contact us!)
6. Super mini size,only 20*76mm.
7. Low power consumption and low maintenance.

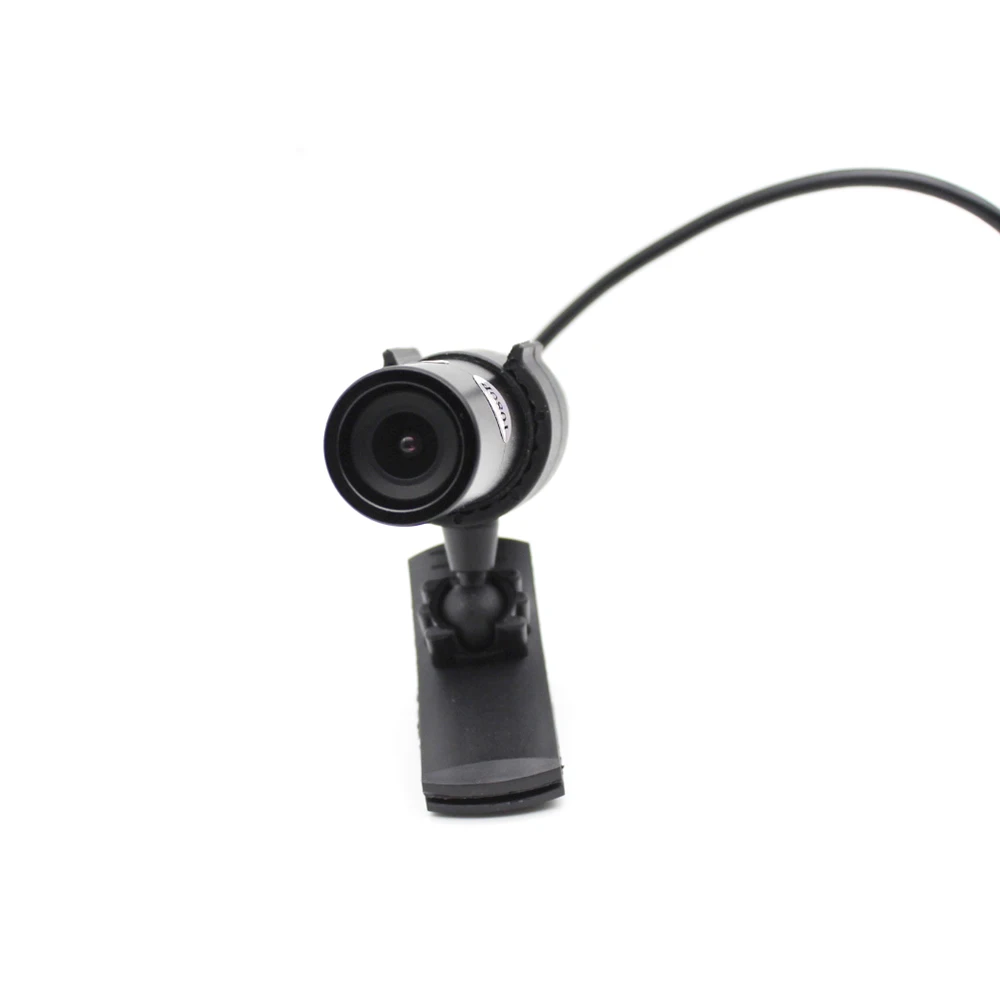

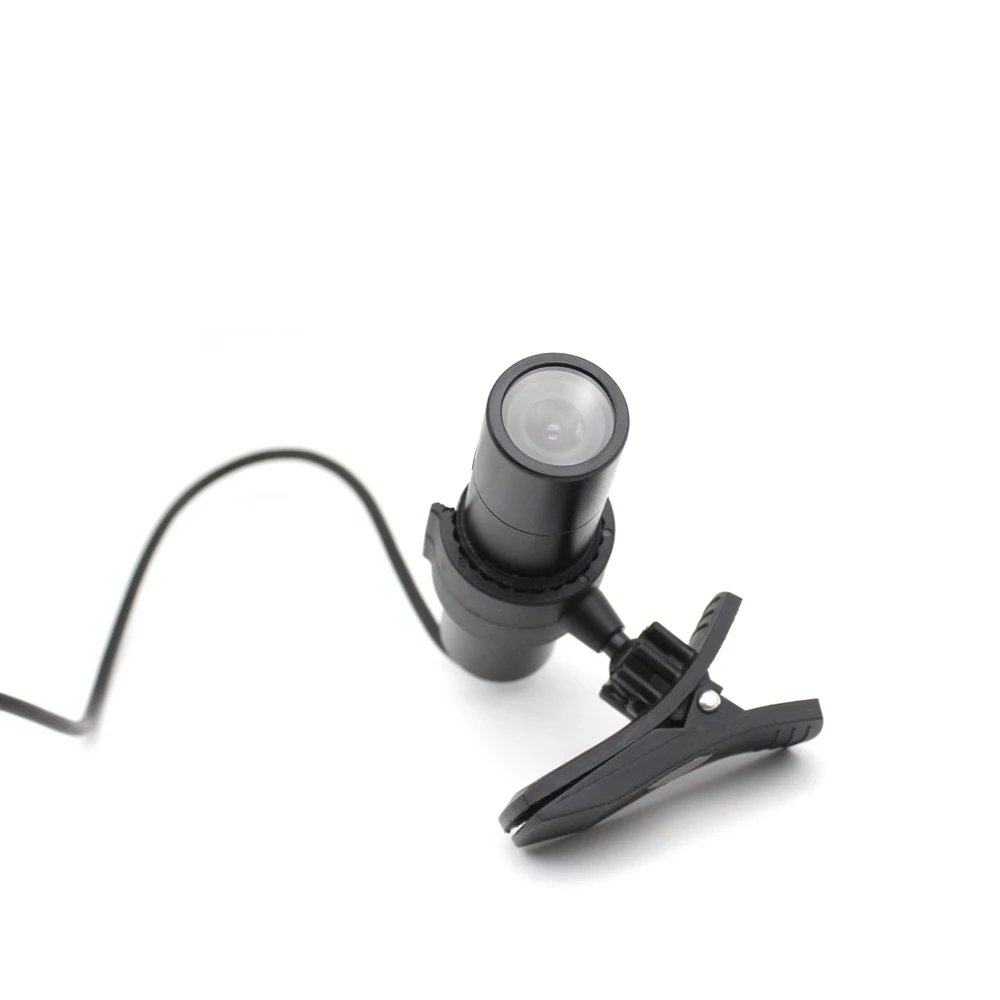

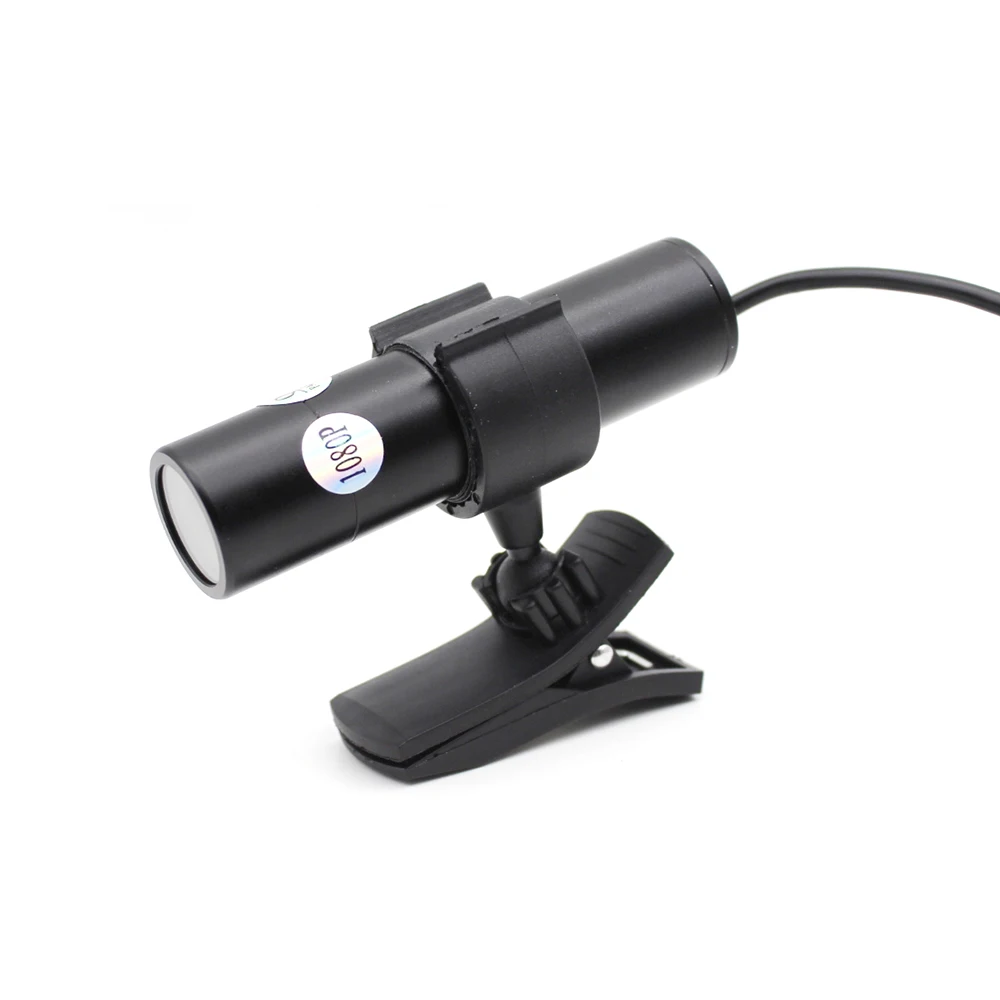

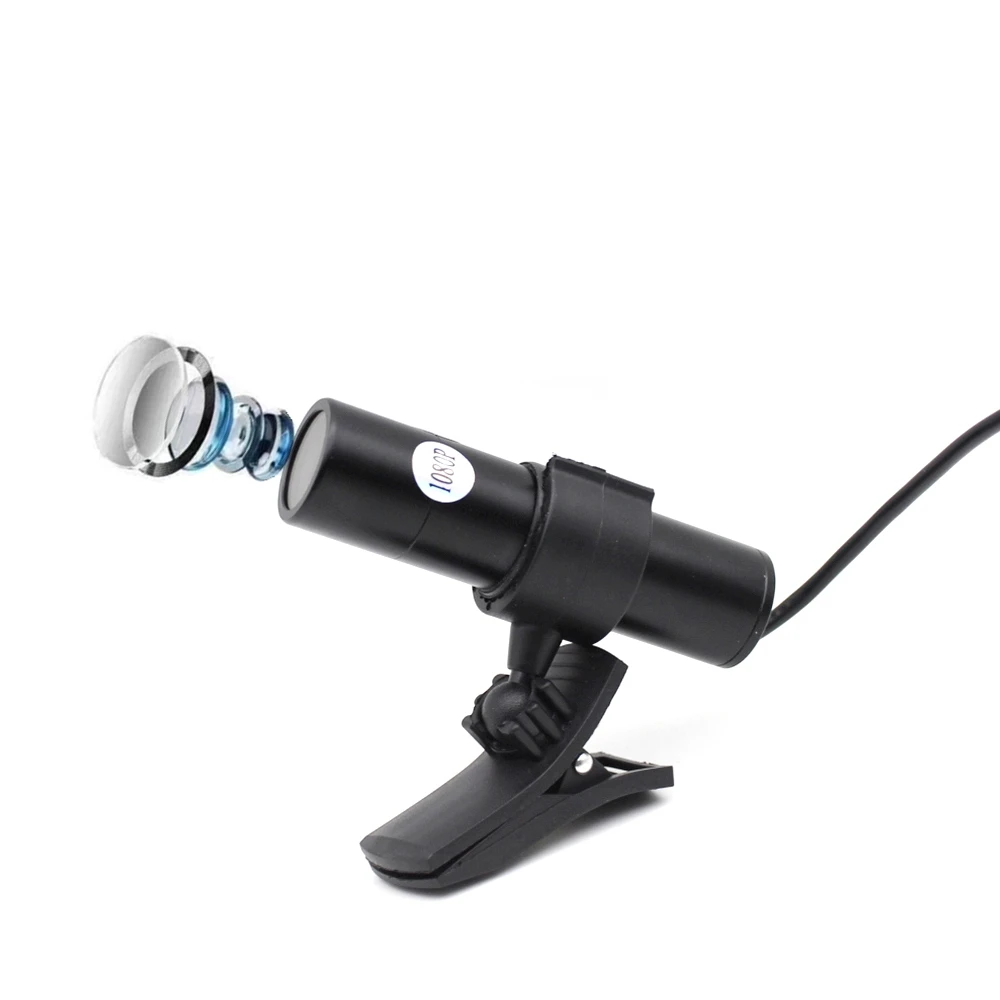

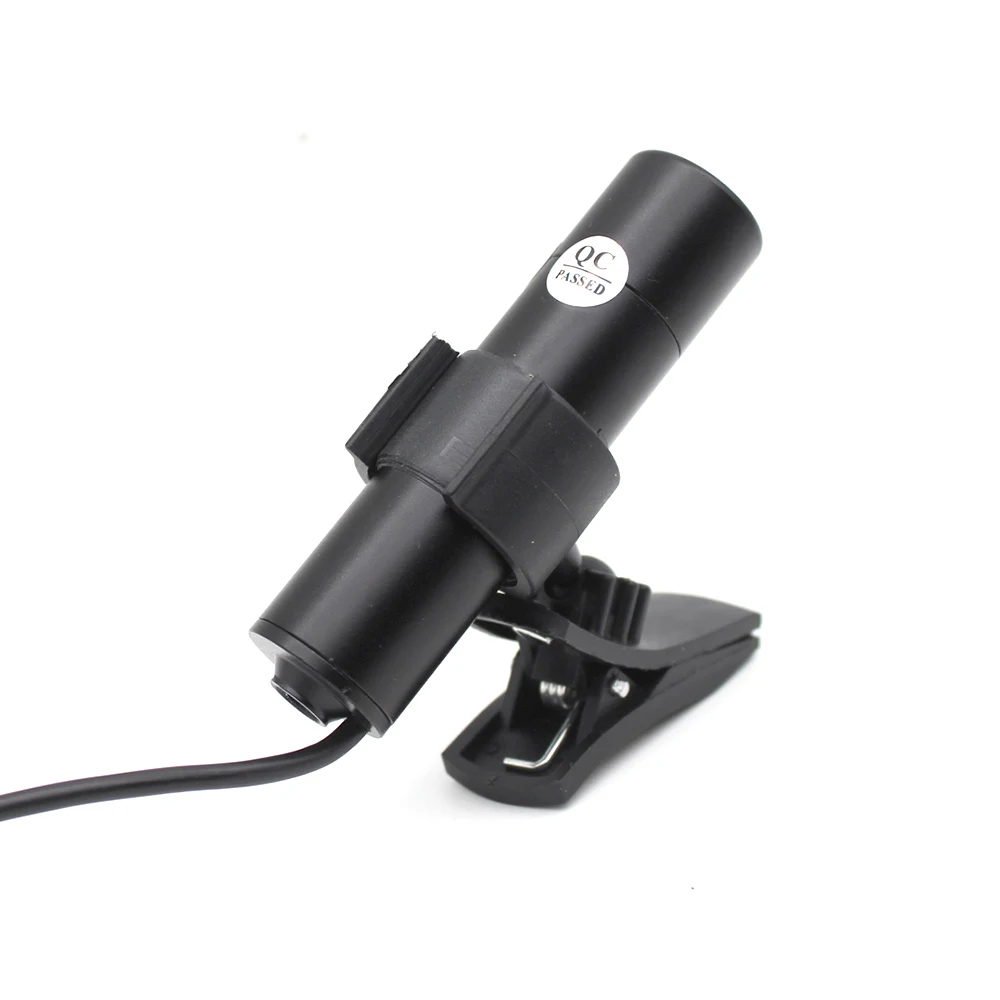

8.Metal case with bracket.
Main Features:
· Image sensor 1/2.7" CMOS, 0.1Lux, 2.0MP imag
· Free Driver microUSB (UVC)
· HIGH SPEED, compression USB 1.1
· Default setting (30fps@1920*1080p)
· Manual focus lens
· Angle of view around 100 degrees (without any distortion)
· Compression YUY2 & MJPEG
· Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
· Linux(In 2.6.18 above the kernel version);Mac ps3; Android system
· Dimension 20mm Diamater
· USB Power: 5V±10%DC,50mA
· Used:intelligent machine/Android Device
· Can be customized by your requirements
Detailed Specifications Of The Parameters
Models VS-OBT20-2MP
Image sensor | 1/2.7" Color CMOS | |
Effective Pixels | 1920(H)x1080P(v)1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions | |
Synchronizing system | Internal | |
Scanning system | Progressive Scan | |
Video output | VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120) | |
S/N ratio | More then 48 dB (AGC Off) | |
Min. Illumination | 0.1 Lux @ F1.2 | |
Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
Gamma Characteristic | Auto r=0.45 | |
Picture | Brightness / Contrast / Gamma / Saturation | |
Miscellaneous | BW Image / Mirror / Flip / Back Light / Flickerless | |
Power source | 5V DC / 400mA | |
Operating current | 125mA / regulated 5.7VC in | |
Lens | Standard | 3.6mm MTV Lens |
Operating Temperature | 0°C∼ 40°C (Humidity : 0% RH∼ 80% RH) | |
Interface Type | usb2.0 | |
Measurement (mm) | / | |
Weight (Approx. G) | 40g |
Packing included:
1x camera
1x bracket
1x manual

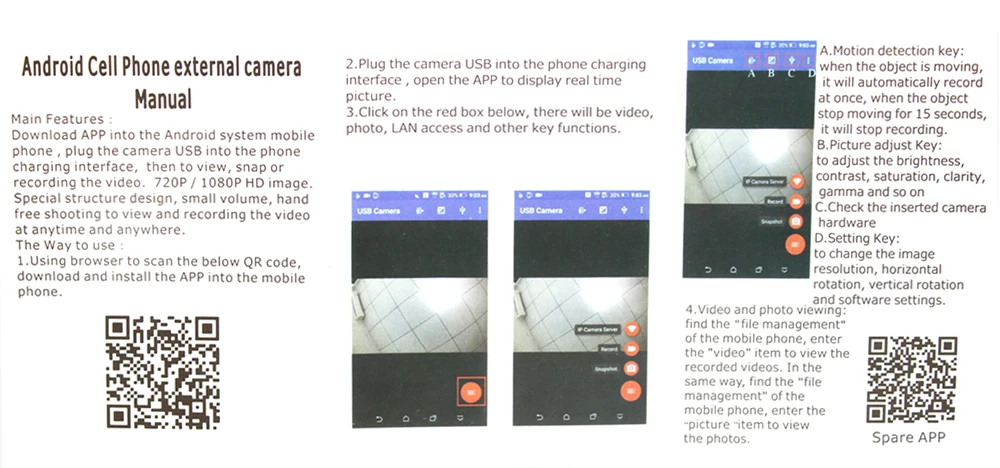

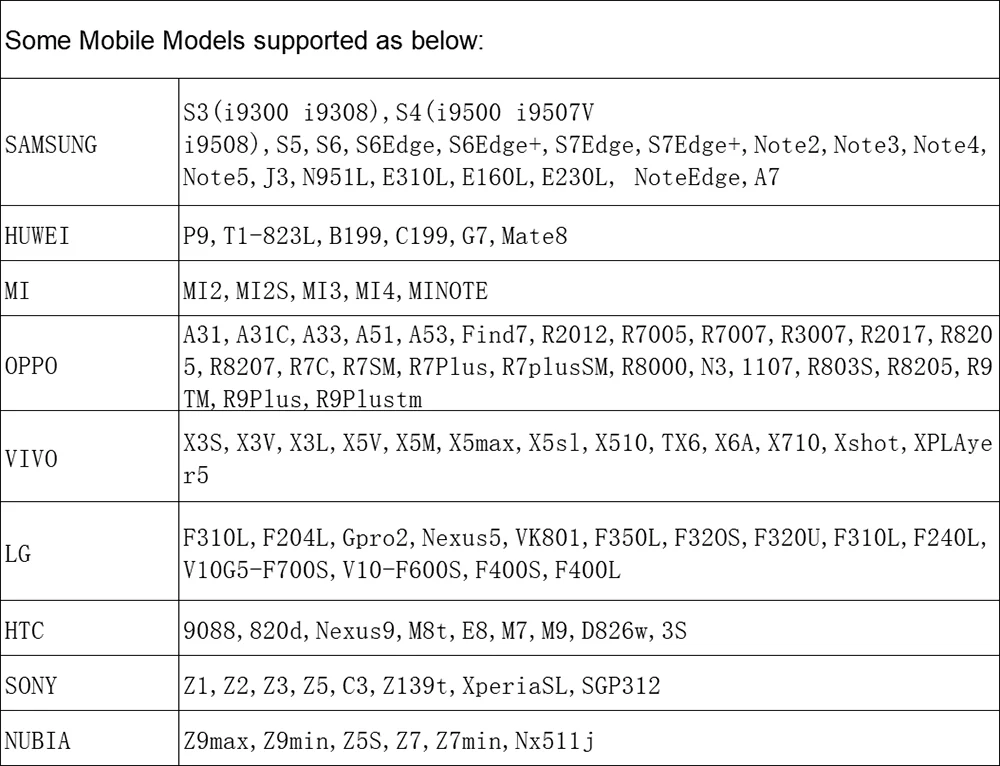

This Camera not apply to all the Android Phone and Computer System.Please note that your phone must support OTG and UVC camera function, Android system above.The compatible Phone and Computer System please refer to the following list or some new models.
Applications:
12:video door phone 13:HD surveillance
